330R is too much. Try 47R
Also the zener needs to be connected reverse biased from the resistor and connected to ground so that it absorbs transients over 18V.
I just noticed your output capacitor on the 5V regulator is pretty low too. 10 to 100uF may be better.
Also the zener needs to be connected reverse biased from the resistor and connected to ground so that it absorbs transients over 18V.
I just noticed your output capacitor on the 5V regulator is pretty low too. 10 to 100uF may be better.
Does the IGBT get hot? (make sure you have a common ground)
I've wired it up as above and get the same outcome. I've not changed the 47R and 33R yet but will try 100R if you think that's suitable, or I'll get the correct ones tomorrow.
I'm off to bed; shattered.
But thanks for all your help. It is very much appreciated. As you can tell I know very little about this stuff. And I realise my questions must be damn annoying; sorry.
I'm off to bed; shattered.
But thanks for all your help. It is very much appreciated. As you can tell I know very little about this stuff. And I realise my questions must be damn annoying; sorry.
You can put two 100 ohm resistors in parallel to get 50 ohms (close enough for 47, and three in parallel for 33 ohms.
The 33 ohm gate resistor is a guess based on nothing much at all. I'm not sure about your frequency of operation or pulse length.
depending on the frequency, the 1k and 0.1uF resistor on the output of the PIC may be a factor too.
But the most important thing is getting a good 5V rail. The output of this needs to be 5V. Do you have any idea of the maximum current required from your 5V rail?
Yes, the resistor and zener are now correct. It is important to ensure that at maximum current the resistor does not drop too much voltage. If you need a current higher than about 100mA, then another approach may be needed.
The 33 ohm gate resistor is a guess based on nothing much at all. I'm not sure about your frequency of operation or pulse length.
depending on the frequency, the 1k and 0.1uF resistor on the output of the PIC may be a factor too.
But the most important thing is getting a good 5V rail. The output of this needs to be 5V. Do you have any idea of the maximum current required from your 5V rail?
Yes, the resistor and zener are now correct. It is important to ensure that at maximum current the resistor does not drop too much voltage. If you need a current higher than about 100mA, then another approach may be needed.
Reading the data sheet, I wouldn't use a gate resistor higher than 10 ohms.
You still need a diode in parallel with the inductance. Read this post carefully!
https://www.electronicspoint.com/need-help-wih-snubber-t244850.html
As to the latch-up of the PIC:
What are you doing with the secondary of the coil. Sparks are nasty things, and a PIC sure isn't an EMP hardened device!
Get that spark far away as you can, and be aware I know quite a few folks who tried this same thing and damaged computers and keyboards on the same bench!
Got any pictures of your layout? Are you discharging that sparc directly to the ground rails?
I did a circuit like this many years ago, had to put the drive electronics in a metal box, and the external.
Good luck!
(I really need to find a way t convert schematics from my PCAD so I can post them here.)
You still need a diode in parallel with the inductance. Read this post carefully!
https://www.electronicspoint.com/need-help-wih-snubber-t244850.html
As to the latch-up of the PIC:
What are you doing with the secondary of the coil. Sparks are nasty things, and a PIC sure isn't an EMP hardened device!
Get that spark far away as you can, and be aware I know quite a few folks who tried this same thing and damaged computers and keyboards on the same bench!
Got any pictures of your layout? Are you discharging that sparc directly to the ground rails?
I did a circuit like this many years ago, had to put the drive electronics in a metal box, and the external.
Good luck!
(I really need to find a way t convert schematics from my PCAD so I can post them here.)
Forget that, windows 7 has a snipping tool. Best thing since sliced bread, else there is always paint. Ctrl + Print screen and then Ctrl + P in paint, crop edit save and post.
Can you program your pic to use a open collector or open drain? That way you won't need the extra transistor. I have built a couple using slotted interrupters and they worked good. You need a pull up resistor and your pic will ground the gate. I didn't use a capacitor on the gate. What is that for? I saw a circuit with a cap across the gate resistor somewhere. They said it helped to turn the transistor off, faster. You will need a gate resistor to ground, to turn the transistor off. I used a 4 meg ohm. I didn't use the diode across the transistor, but that might work better. You need a .1 silver mica cap across the transistor to ground. This will give a hotter spark, not sure why, maybe it stores energy and releases it when the transistor turns off. You will need a 1.2k resistor between the pic and the gate to protect the pic. 12/.010=1.2k Mine puts out 5000 volts which is the same as my old Toyota car. You could also build a capacitive discharge system if you wanted a hotter spark. You can buy a voltage tester for electric fences at a farm store. They aren't too expensive or you could build one.
I am going to build one using the hall effect device too, when I get time, if I could stay off this computer! I like your idea of using a pic, but I have never used one before. Will you be able to advance and retard the spark? You would need a throttle position sensor and a rpm sensor to do that right.
Oh, you will only want to turn the transistor on for a short time, just long enough for the coil to charge, so it doesn't get too hot.
I am going to build one using the hall effect device too, when I get time, if I could stay off this computer! I like your idea of using a pic, but I have never used one before. Will you be able to advance and retard the spark? You would need a throttle position sensor and a rpm sensor to do that right.
Oh, you will only want to turn the transistor on for a short time, just long enough for the coil to charge, so it doesn't get too hot.
Last edited:
Wait a minute......it's an ignition coil!
I feel like a an idiot for not catching this on the first post.
Show us a schematic of the ignition coil. (How many wires does it have?)
I feel like a an idiot for not catching this on the first post.
Show us a schematic of the ignition coil. (How many wires does it have?)
It certainly will, but it will also tell us if the IGBT is getting hot because of the way you're driving the load (insufficient gate drive, switching speed, or gate voltage), or if it's caused by avalanche within the device.
Gonzoengineer is better equipped than me for this, but I recall a dv/dt issue as well.
OK Guy's.......look at this picture carefully. Then you will see what I mean.
http://www.instructables.com/community/Ignition-Coil/
http://www.instructables.com/community/Ignition-Coil/
OK I've done all of these recommendations and the circuit looks like this. Although I have just noticed that in place of the 1N4007's I have 1N4004's does that matter?
The 5V rail is now 4.94V. Good enough?
The gate of the IGBT now switches from 0 to 7.08V, however with just the multimeter in place of the coil I get 12.1V to 13.1V when the gate switches and the IGBT get's quite warm. I'll recheck everything I guess....

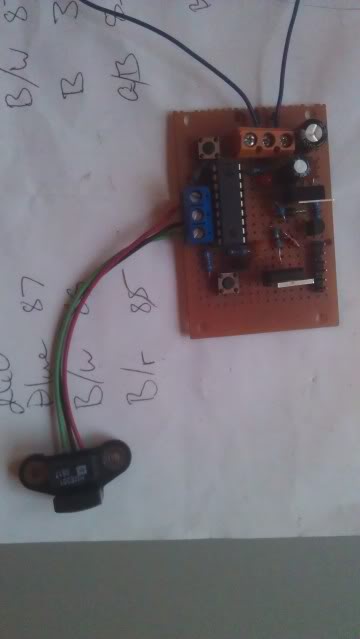

Here's a couple of photos of my setup.
