OK, I have been waiting on desoldering braid to get here and finally got it yesterday. I also managed to get my hands on a known good replacement circuit board. Finished the cratered board/blown trace repair and replaced the blown transistor. Here are photos showing BCE voltages on all the transistors in the area. The photos are in the following order: CW direction-good board; CW direction-bad board; CCW direction-good board; CCW direction-bad board.

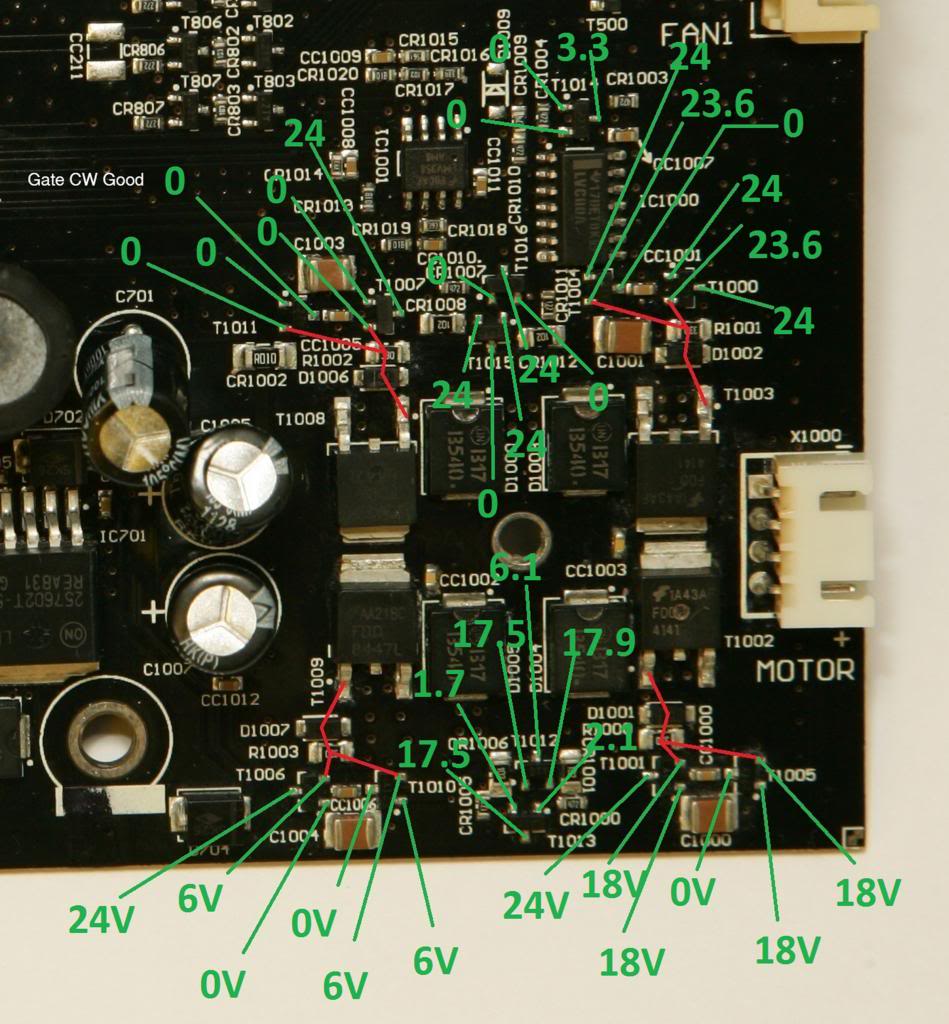

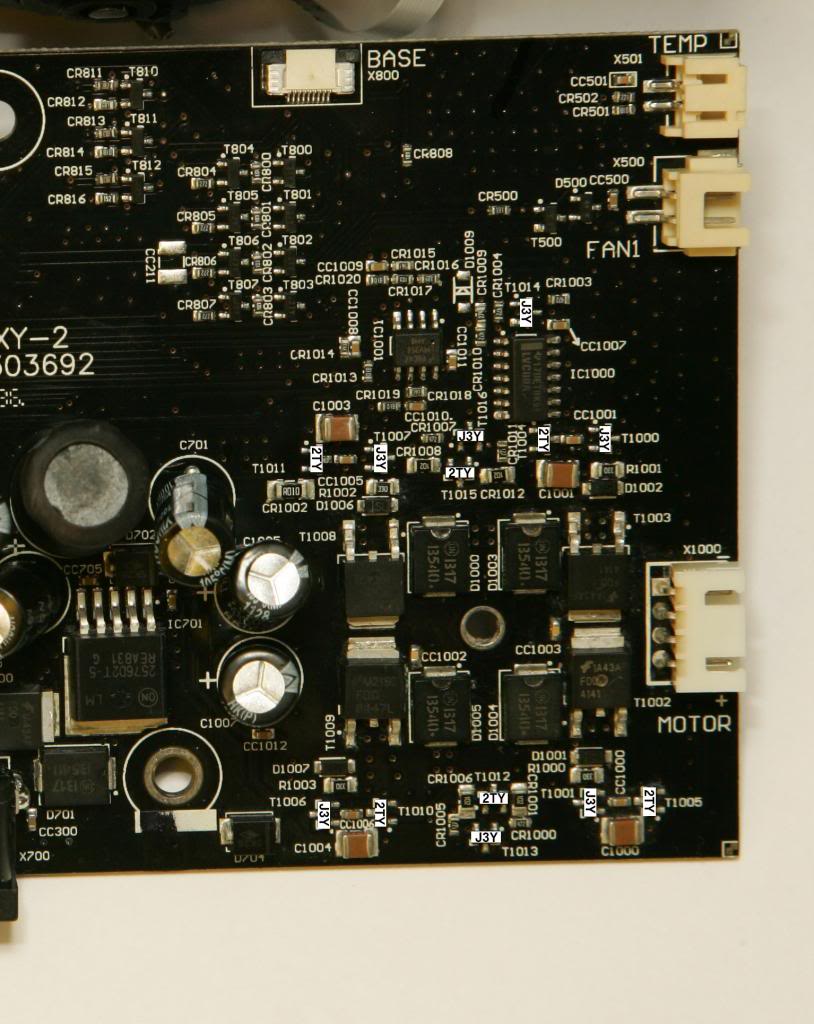

CW - Good Board:

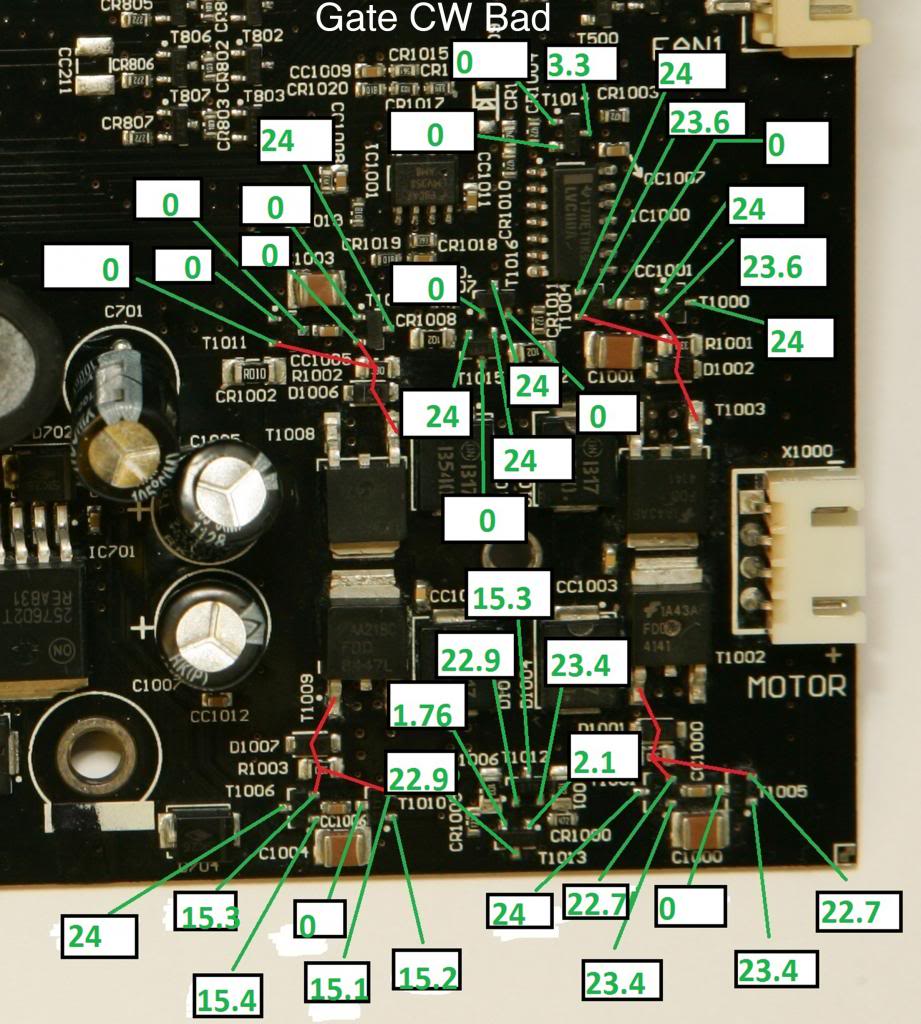

CW - Bad Board:

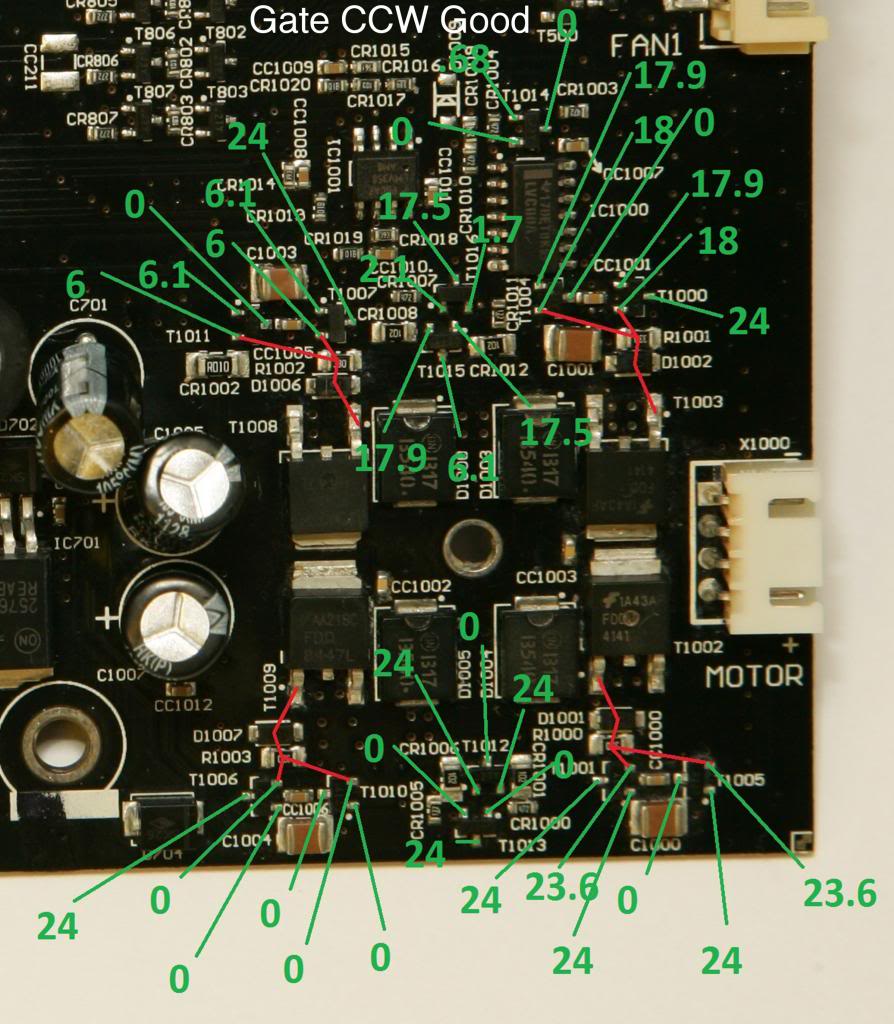

CCW - Good Board:
CCW - Bad Board:
From what I can see, the problem area is T1006? I have 15V on both legs where I should have 6V and 0V. I checked out IC1000 and IC1001 and they are both reading identical voltages everywhere on all boards. T1010 is also 15V when it should be 6V but that is because it's getting the voltage from T1006. T1012 is also getting 15V which is causing the legs to go high, right? So now I have to figure out why T1006 is getting 15V. I also found it odd that T1000 is getting 24V on the CCW Good Board and 0V on the CCW Bad Board, even though the CCW direction seems to function fine.
CW - Good Board:

CW - Bad Board:

CCW - Good Board:

CCW - Bad Board:

From what I can see, the problem area is T1006? I have 15V on both legs where I should have 6V and 0V. I checked out IC1000 and IC1001 and they are both reading identical voltages everywhere on all boards. T1010 is also 15V when it should be 6V but that is because it's getting the voltage from T1006. T1012 is also getting 15V which is causing the legs to go high, right? So now I have to figure out why T1006 is getting 15V. I also found it odd that T1000 is getting 24V on the CCW Good Board and 0V on the CCW Bad Board, even though the CCW direction seems to function fine.
