Yorkville 100watt Mixer/Amp - Replaced Transistors
- Thread starter Jason G
- Start date
Sir Jason . . . . . . .Geeeeee
O.K. then . . . . that maintaining of the differential pair of voltages . . .equally . . .as well as their same degrees of loadings, allays that suspicion of a "lazy" filter capacitor of a conjunct power supply pair.
I now leave this for you to muse over, before I can deploy its info towards the next situation.
Since the audio of music that we hear is a complex and variable and changing mix . . . .as well . . .with its speech / vocals.
The outputted audio is copycatting the same info, but at higher voltage and power levels.
For the next test we are needing a tone to feed into the amp and amplify while we do some differential voltage testing.
In my case, I just pull out one of several options of audio signal or function generators.
OR . . . . . old school style, I could pull out a vinyl record from the 60-70's that had test audio on one side and the whole opposite side had looooooong periods of test tones for a whole 30 minutes.
Or . . . . . go the cassette player / recorder route and record the accompanying test tone from a TV station after it goes off the air and leaves on a test pattern for a period of time.
Or . . . . . if finding myself afar, upon the steppes of the Himalayas . . . . . or at a distant Timbuktu.
I could scavenge for a mere small signal NPN transistor, 4-5 resistors and three like value capacitors ,an output coupling capacitor, a 9V battery and then cobble up myself a phase shift audio test oscillator.
OR . . . . current times . . . . . you could get any tone needed from your computer's audio port and internet linkage to audio source options.
Ditto . . . . on using a much smaller Smart phone with proper interconnective wiring.
Same . . . . for an I-pad or an Amazon Fire tablet . . . or like variants of other companies . . . . and using their audio output headphone jacks.
Noooooooooooo . . . now you COULDN'T actually be HAVING have an audio generator . . . nor borrowing access to one ?
NOR . . . . could you have ONE of the very-very few systems that have a push button and BAAAAAAMMMMMMM
there is being a 400 / 1000 ~ audio tone for testing of R-L stereo speaker balancing, or phasing of interconnected speakers.
Think over your possibilities . . . . and I will then fill you in on the magic to follow.
Although, this certainly suggests of a power supplies limitations on its progressive power demands.
Also, think about if you have an AC power line isolated audio amp for stage by stage audio signal tracing . . . .
The main unit of a computer speakers pair, coming to mind, along with an audio patch cord with its RCA plug ends .
73's de Edd
.....
O.K. then . . . . that maintaining of the differential pair of voltages . . .equally . . .as well as their same degrees of loadings, allays that suspicion of a "lazy" filter capacitor of a conjunct power supply pair.
I now leave this for you to muse over, before I can deploy its info towards the next situation.
Since the audio of music that we hear is a complex and variable and changing mix . . . .as well . . .with its speech / vocals.
The outputted audio is copycatting the same info, but at higher voltage and power levels.
For the next test we are needing a tone to feed into the amp and amplify while we do some differential voltage testing.
In my case, I just pull out one of several options of audio signal or function generators.
OR . . . . . old school style, I could pull out a vinyl record from the 60-70's that had test audio on one side and the whole opposite side had looooooong periods of test tones for a whole 30 minutes.
Or . . . . . go the cassette player / recorder route and record the accompanying test tone from a TV station after it goes off the air and leaves on a test pattern for a period of time.
Or . . . . . if finding myself afar, upon the steppes of the Himalayas . . . . . or at a distant Timbuktu.
I could scavenge for a mere small signal NPN transistor, 4-5 resistors and three like value capacitors ,an output coupling capacitor, a 9V battery and then cobble up myself a phase shift audio test oscillator.
OR . . . . current times . . . . . you could get any tone needed from your computer's audio port and internet linkage to audio source options.
Ditto . . . . on using a much smaller Smart phone with proper interconnective wiring.
Same . . . . for an I-pad or an Amazon Fire tablet . . . or like variants of other companies . . . . and using their audio output headphone jacks.
Noooooooooooo . . . now you COULDN'T actually be HAVING have an audio generator . . . nor borrowing access to one ?
NOR . . . . could you have ONE of the very-very few systems that have a push button and BAAAAAAMMMMMMM
there is being a 400 / 1000 ~ audio tone for testing of R-L stereo speaker balancing, or phasing of interconnected speakers.
Think over your possibilities . . . . and I will then fill you in on the magic to follow.
Although, this certainly suggests of a power supplies limitations on its progressive power demands.
Also, think about if you have an AC power line isolated audio amp for stage by stage audio signal tracing . . . .
The main unit of a computer speakers pair, coming to mind, along with an audio patch cord with its RCA plug ends .
73's de Edd
.....
Hey! haha love the replies and I really enjoy reading your writing style!
So I can easily use my phone/laptop to generate a test tone at whatever frequency you require and run that through the amp. I could also bring my amp to a engineer friend who has a scope at his office to do really deeper analysis.
For now i'm hoping there is more I can test/troubleshoot on my own with a DMM and a test tone as you mentioned.
What is the best way to move forward, will you write out a test plan and i'll execute and reply with my results?
So I can easily use my phone/laptop to generate a test tone at whatever frequency you require and run that through the amp. I could also bring my amp to a engineer friend who has a scope at his office to do really deeper analysis.
For now i'm hoping there is more I can test/troubleshoot on my own with a DMM and a test tone as you mentioned.
What is the best way to move forward, will you write out a test plan and i'll execute and reply with my results?
Further in-depth testing would best be done with a test tone and oscilloscope.
Tracing the signal through from input to output at the appropriate levels (low to high) will soon reveal the point of distortion.
It is possible to get an oscilloscope function through the input of a soundcard (PC) for which there are software packages (many free) online.
Tracing the signal through from input to output at the appropriate levels (low to high) will soon reveal the point of distortion.
It is possible to get an oscilloscope function through the input of a soundcard (PC) for which there are software packages (many free) online.
Ok, now given my limitation of electronics knowledge could this still be something I can test/measure and report back to you all? I'm at a loss at where to begin (Exact locations on the PCB to test)
Looking back at my first post and the spec on the transistors i installed vs the stock ones, is there any amount of confidence that the spec difference (although to my eyes very minor) can be the culprit and maybe I should focus my energy on finding the exact same transistors?
Are there other components that high a decent probability of being the issue and maybe for the cost i should just replace them anyways?
I thank again all those who have given me their time so far. I really hope i can resurrect this amp back to 100% working order.
Looking back at my first post and the spec on the transistors i installed vs the stock ones, is there any amount of confidence that the spec difference (although to my eyes very minor) can be the culprit and maybe I should focus my energy on finding the exact same transistors?
Are there other components that high a decent probability of being the issue and maybe for the cost i should just replace them anyways?
I thank again all those who have given me their time so far. I really hope i can resurrect this amp back to 100% working order.
Sir Jason . . . . . . .Geeeeee
A continuance . . .
OK on the test tone capability.
Lets go to the RA16 base resistor at the BC560 at the input of the Audio Power Output stage and couple a tone into that with a ground at that bottom side of the resistor and use an isolative 0.1 ufd cap at the top of that resistor to couple the audio in thru.
That way, the paper / poly / or ceramic coupling capacitor gives circuitry DC isolation.
Since we are far past any volume control circuitry, you will have to start with the tone level at a minimum and slowly bring it up to see if you are then able to exceed the level that you had initially experienced your audio distortion, when it (or audio) was passing thru the WHOLE system.
Testee-Testee
73's de Edd
.....
A continuance . . .
OK on the test tone capability.
Lets go to the RA16 base resistor at the BC560 at the input of the Audio Power Output stage and couple a tone into that with a ground at that bottom side of the resistor and use an isolative 0.1 ufd cap at the top of that resistor to couple the audio in thru.
That way, the paper / poly / or ceramic coupling capacitor gives circuitry DC isolation.
Since we are far past any volume control circuitry, you will have to start with the tone level at a minimum and slowly bring it up to see if you are then able to exceed the level that you had initially experienced your audio distortion, when it (or audio) was passing thru the WHOLE system.
Testee-Testee
73's de Edd
.....
Would you be able to guide me on exactly where to connect this input to the audio output stage? I just want to ensure i do it right. Maybe you could mark up the schematic including how i would wire up the .1 ufs cap (if you have a model of cap to buy that would be sweet!)
And back to the question about transistors, never heard if anyone thinks maybe this is all due to the spec of the transistor being slightly off?
And back to the question about transistors, never heard if anyone thinks maybe this is all due to the spec of the transistor being slightly off?
Sir Jason . . . . . . .Geeeeee
Here are the inputs for the tone.
The signal lead could go to the same options of:
The base of BC560 . . . . Q16
Or bottom lead of 100K . . . . . RA16
Or that bare jumper wire that is between the two green pads.
Audio ground could go to the top lead of 100K R16.
BTW what was your initial audio test source being, and into which of the 4 or more possible audio inputs of this unit.
PCB FOIL LAYOUT . . . . . SNIPPET
73's de Edd
.....
Here are the inputs for the tone.
The signal lead could go to the same options of:
The base of BC560 . . . . Q16
Or bottom lead of 100K . . . . . RA16
Or that bare jumper wire that is between the two green pads.
Audio ground could go to the top lead of 100K R16.
BTW what was your initial audio test source being, and into which of the 4 or more possible audio inputs of this unit.
PCB FOIL LAYOUT . . . . . SNIPPET
73's de Edd
.....
OK awesome, i will test this tonight and report back. Do you want me to report simply if there is distortion similar to through the normal pre-amp phase?
As for audio test, i ran my phone and played some music, used all front inputs (except for the XLR)
I also plugged in my electric bass guitar and same thing, nice clean good sounding tone until i hit a certain volume, then i hear distortion. I may record a quick youtube video with a mic on the speaker cab so you can get a sense of what is going on.
As for audio test, i ran my phone and played some music, used all front inputs (except for the XLR)
I also plugged in my electric bass guitar and same thing, nice clean good sounding tone until i hit a certain volume, then i hear distortion. I may record a quick youtube video with a mic on the speaker cab so you can get a sense of what is going on.
Sir Jason . . . . . . .Gee
HEY ! I see that the balls been lobbed back into my court . . . how you do dat ? . . .you sneaky . . .velly- velly sneaky !
The best logic would be the initial evaluation of the final . . .power output stage . . to see how it responds, and if being flawless . . . to move to the sequential intervening prior signal handling stages.
73's de Edd
.....
HEY ! I see that the balls been lobbed back into my court . . . how you do dat ? . . .you sneaky . . .velly- velly sneaky !
The best logic would be the initial evaluation of the final . . .power output stage . . to see how it responds, and if being flawless . . . to move to the sequential intervening prior signal handling stages.
73's de Edd
.....
Ok, finally got around to your test. Audio signal on RA16 and the bare jumper wire beside it. Same exact outcome. Regardless of music or a straight frequency signal the behaviour is similar. Clean signal up until a certain point and then the distortion happens. I will try to record a video to show you.
I believe its safe to say its nothing for sure in the pre-amp stage.
I was thinking to start just replacing some components. This was my list so far.
Would love to know your thoughts and what else i can do/try or should I just start replacing components?
For the cost and if the risk is minimal then should i just do that?
I believe its safe to say its nothing for sure in the pre-amp stage.
I was thinking to start just replacing some components. This was my list so far.
Would love to know your thoughts and what else i can do/try or should I just start replacing components?
For the cost and if the risk is minimal then should i just do that?
Attachments
Last edited:
Sir Jason . . . . . .Geeeeeeeeeee . . . . .

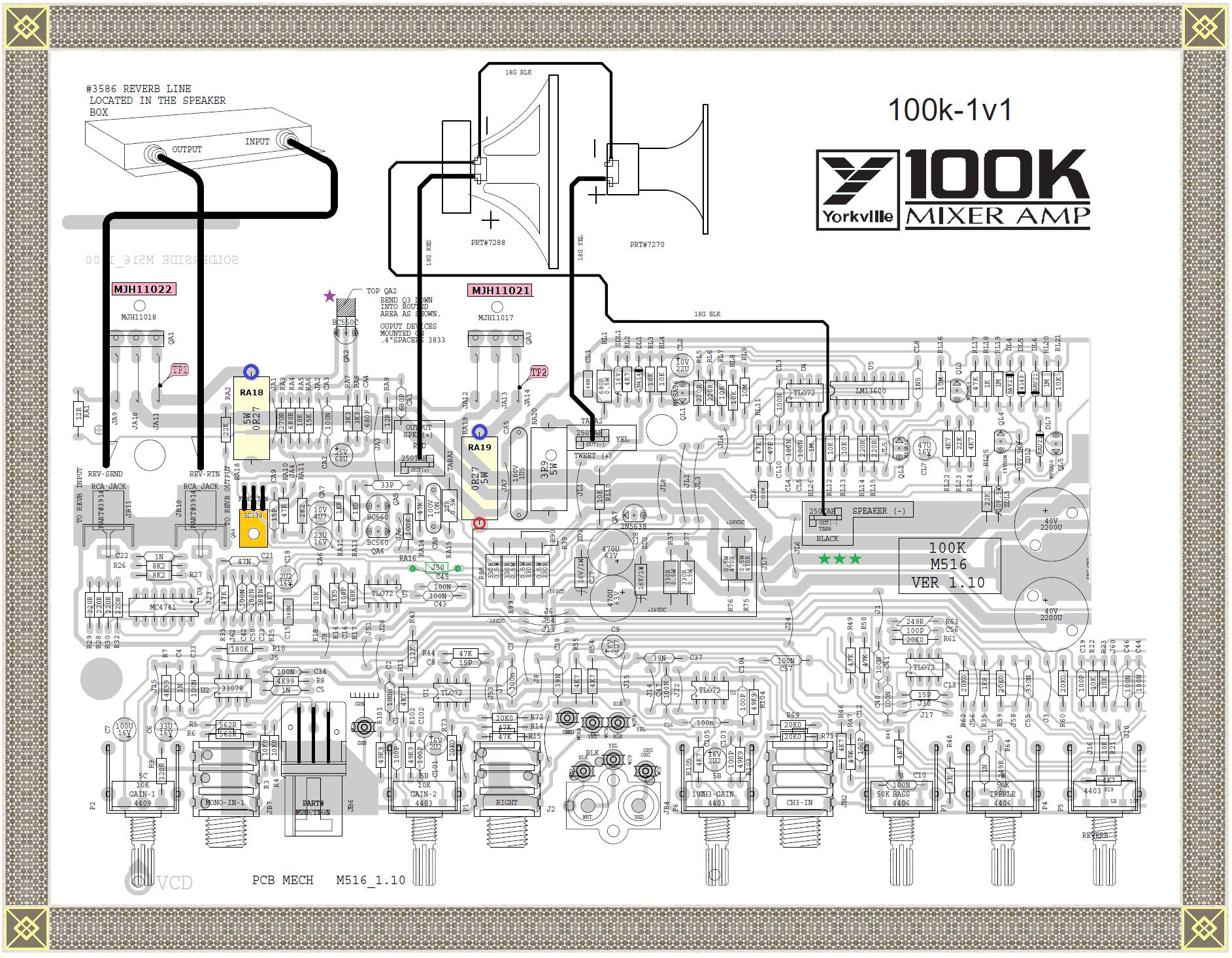

Here is your markup, it being presented as a circuit board PICK-CHOOR, as it seems you handled it better than a schematic page before.
