Need help on digital speedometer fuel meter

[Ralf Kalkuhl]

The problem is that the meter always shows full even when empty i don't know which wire on the gauge is the fuel wire or if its integrated on any of the other wires, the float and sending unit is okay so i think it's either the gauge or the wiring, I converted it from analog to digital, the analog one had 3 wires which i think are 12v, ground and the sender wire from the float. I will include the manual from the digital gauge and the wiring on the bike harness



[73's de Edd]

Sir Ralf . . . . .

If your sender is being a variable resistant unit , it thereby seems like it is dependent upon the value of changing resistance being applied between the very two top pins of the connector which you have shown.
Try connecting a 100 ohm resistor between those two connections and see if the display then indicates a decrease in fuel level.
If so, then a 47 ohm resistor should show an even lower level of fuel on the display.
This confirmed testing would signify an open resistance loop between the sensor proper and those two connections .

73's de Edd

.



[Ralf Kalkuhl]

Sir Ralf . . . . .

If your sender is being a variable resistant unit , it thereby seems like it is dependent upon the value of changing resistance being applied between the very two top pins of the connector which you have shown.
Try connecting a 100 ohm resistor between those two connections and see if the display then indicates a decrease in fuel level.
If so, then a 47 ohm resistor should show an even lower level of fuel on the display.
This confirmed testing would signify an open resistance loop between the sensor proper and those two connections .

73's de Edd

.

Thanks! i'll give it a shot.



[Ralf Kalkuhl]

Thanks! i'll give it a shot.

both 47 and 100 ohm resistors dropped the fuel bar by one bar when tank is empty and it restores to full when tank is full. I connected the resistor to the sender wire the top left pin.



[Ralf Kalkuhl]

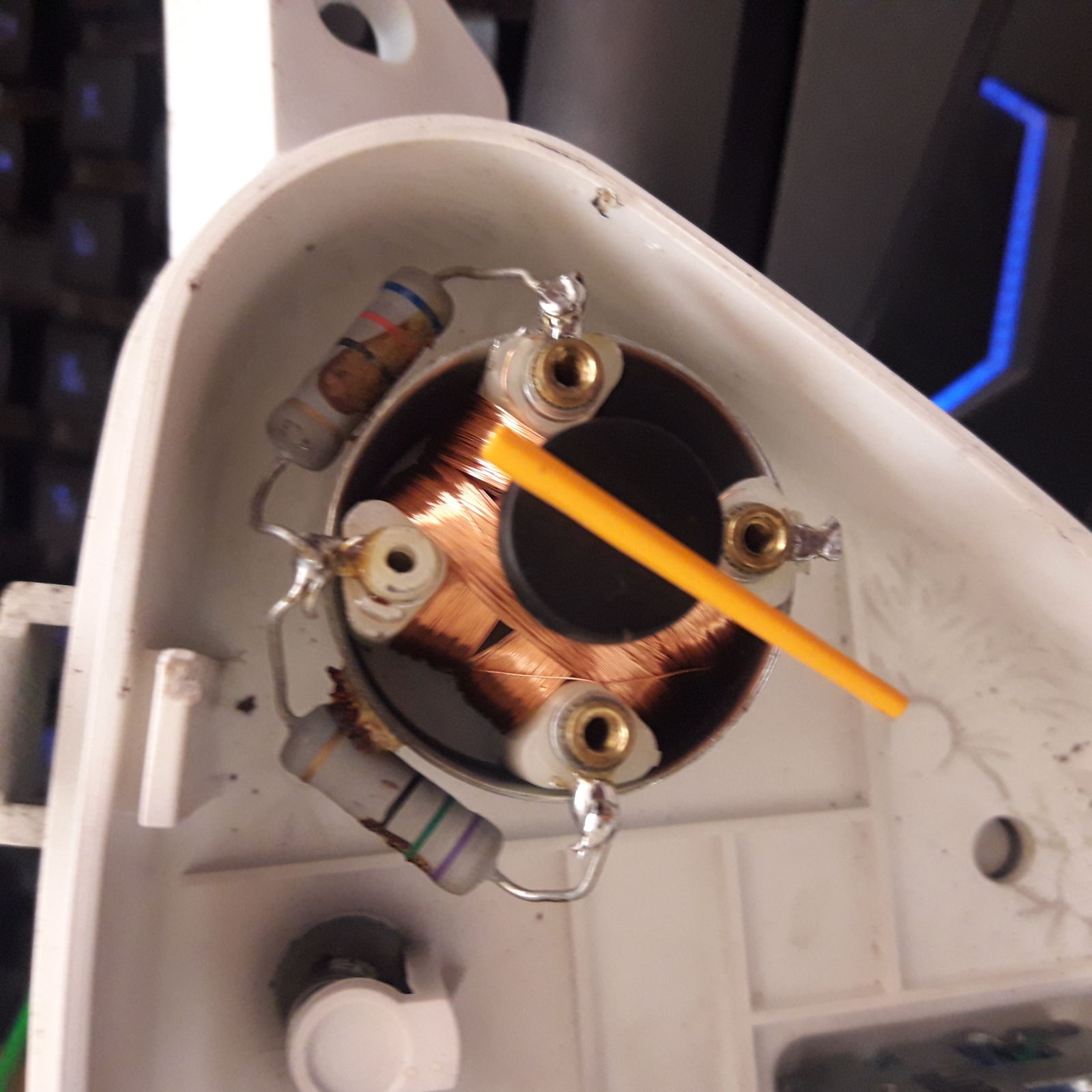

And btw the analog fuel gauge had 2 resistors inside
