how to connect KTY10 temp sensor to a PIC ADC input pin?

Hi,
do I need to use op amp to do this? Can someone make me the wiring diagram, with the proper resistor value and op amp label (4 channel if possible since I will have four of this sensors)?

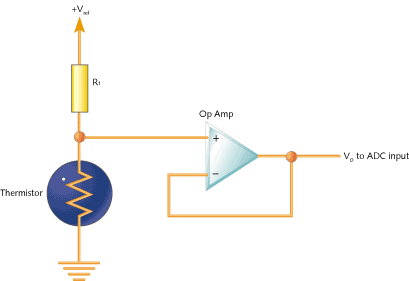

Maybe below schematic will help (google search).


I will aslo need the temp equation (I found this on one site - don't know if it is correct) + I don't know how is with data for those sensors. Somewhere the temp rage is stated in the range from -30 to +130 deg celsius, whereas somewhere from -50 to +180 and also the resistance at 25 deg celsius is not allways the same (1930-1970 ohm)


Attachments

  • Capture.JPG
    9.6 KB · Views: 435
Tempature sensors

There are a few sensors in the market which will give you more accuracy. One is DS18S20 and the other is LM35. There are quite a bit of tutorials involving both sensors and pic micro's.In the picture the thermistor and the resistor are acting as a voltage divider which gives the op amp a reference voltage. I'm not big into hardware but if i can remember correctly that is a non-inverting op-amp circuit. That's as far as my knowledge can take you.
