How to add bypass cap in a pots used as rheostat

[electronoobz]

you guys know that to use it as a rheostat we tie the pin 1 and 2 together..

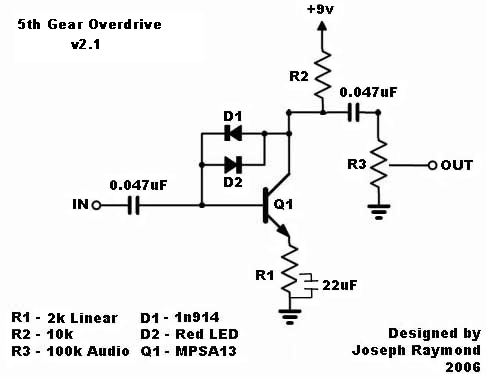

but how to put a bypass cap like in here?

should i put it in pin 1 and 2 also?

or pin 1 and 3???



[davenn]

hi there

but you are showing the cap across R1 ... well almost the top of the cap isnt connected
R1 is a fixed resistor so it only has 2 wire legs, so there is no choice to consider

Dave



[Harald Kapp]

Dave, R1 is supposed to be a linear pot. The wiper is just not shown in the conventional way, cf. R3.

@Electronoobz: what are pins 1, 2 and 3?



[davenn]

Dave, R1 is supposed to be a linear pot. The wiper is just not shown in the conventional way, cf. R3.

well that's pretty flamin' dopey huh, how the heck is some one supposed to know its a trimpot when the diag shows it as a fixed resistor

parts list R1 2k linear isnt really good enough

Dave



[electronoobz]

Im not sure if this is right.. Should i connect 1 and 2 with cap instead tie 1 and 2??



[(*steve*)]

Well, nothing here seems to be connected as a rheostat (variable resistor).

Of course, unless R2 is variable.

Place an arrow on those leads indicating they're a wiper.
