Change current output of PSU

[nikos0608]

Hi, i found a circuit that is easy to make but i want to modify it a bit...
The circuit is based on L200 voltage and current regulator.
So, like this i can get maximum 2A current in output...
How can i get 5A output? What do i have to modify??
The link for the circuit is this: http://www.zen22142.zen.co.uk/Circuits/Power/l200var.html

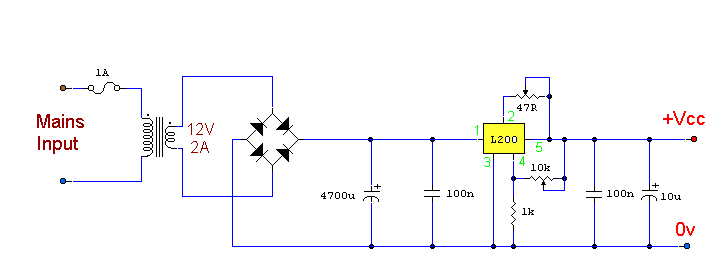

and the schematic is this:

thanks in advance!



[BobK]

Pretty much everything. You need a larger transformer. Higher current diodes. A larger filter capacitor and a different circuit or a different regulator IC. Perhaps this will help if you want to keep the L200:

http://www.st.com/st-web-ui/static/...tion_note/CD00003773.pdf?s_searchtype=keyword

Bob



[nikos0608]

Pretty much everything. You need a larger transformer. Higher current diodes. A larger filter capacitor and a different circuit or a different regulator IC. Perhaps this will help if you want to keep the L200:

http://www.st.com/st-web-ui/static/...tion_note/CD00003773.pdf?s_searchtype=keyword

Bob

mmm and do you know any similar regulator IC?



[BobK]

Not offhand. There are 5A regulators out there though. Not sure they have adjustable current limit, but there is sometimes a circuit in the datasheet to do it externally.

Bob



[PStevenson]

to allow a regulator to pass more current you would typically use a pass transistor (or 2, 3, 4 etc)
eg like in this http://www.eeweb.com/blog/circuit_p...rent-power-supply-by-tip2955-pass-transistors

even the L200 data sheet has a schematic for this method
http://www.zen22142.zen.co.uk/Circuits/Power/l200.pdf
