Greetings,
I seek relevant forums and communities to document my issue and to formulate structured dialogs. With respect to the repair and restoration of a vintage DC power supply from the early 1980's, I need advice and direction. Majority of my experience exists on the computer designing systems, but this project sparks a new curiosity with vintage electronics restoration.

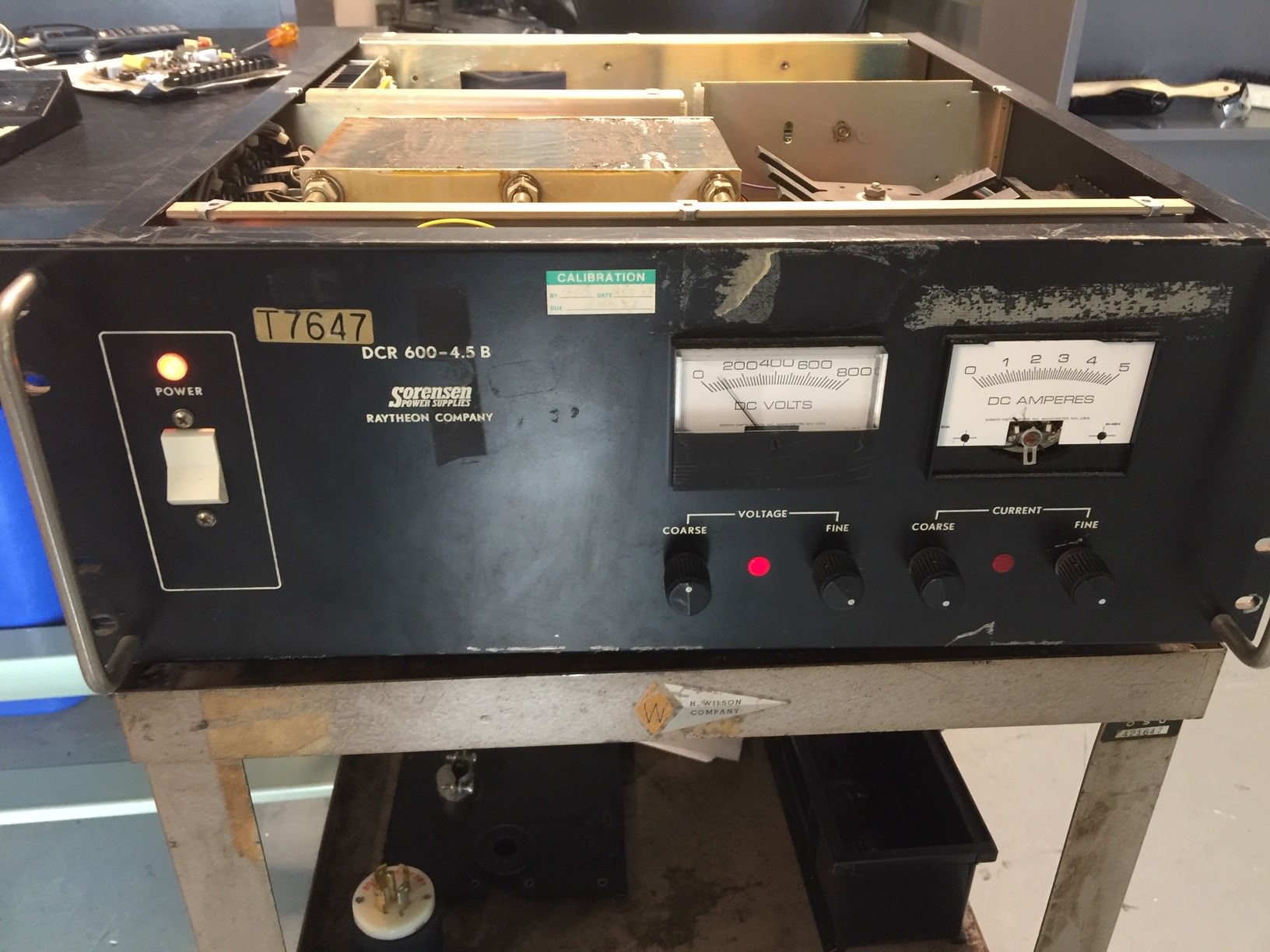

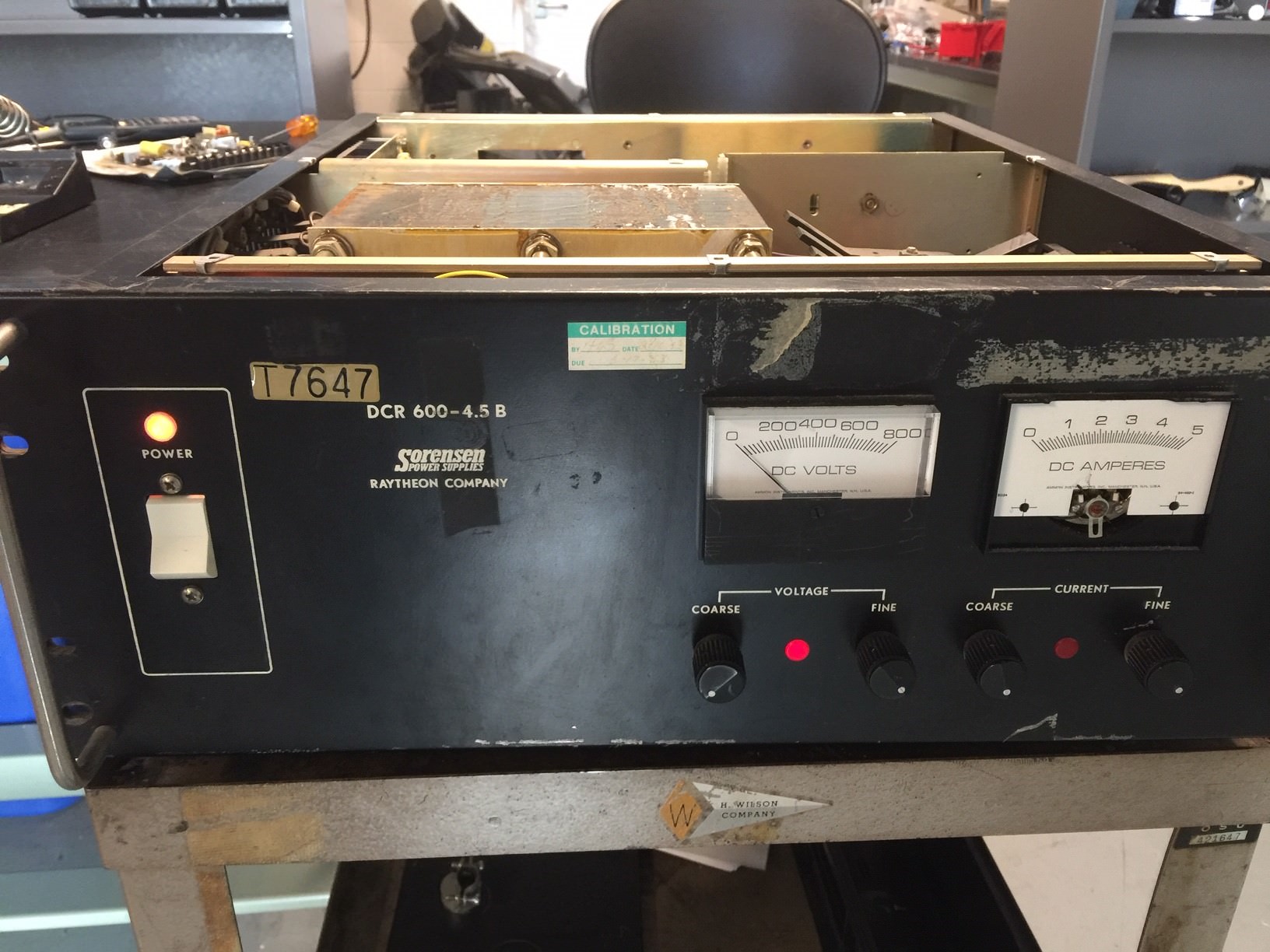

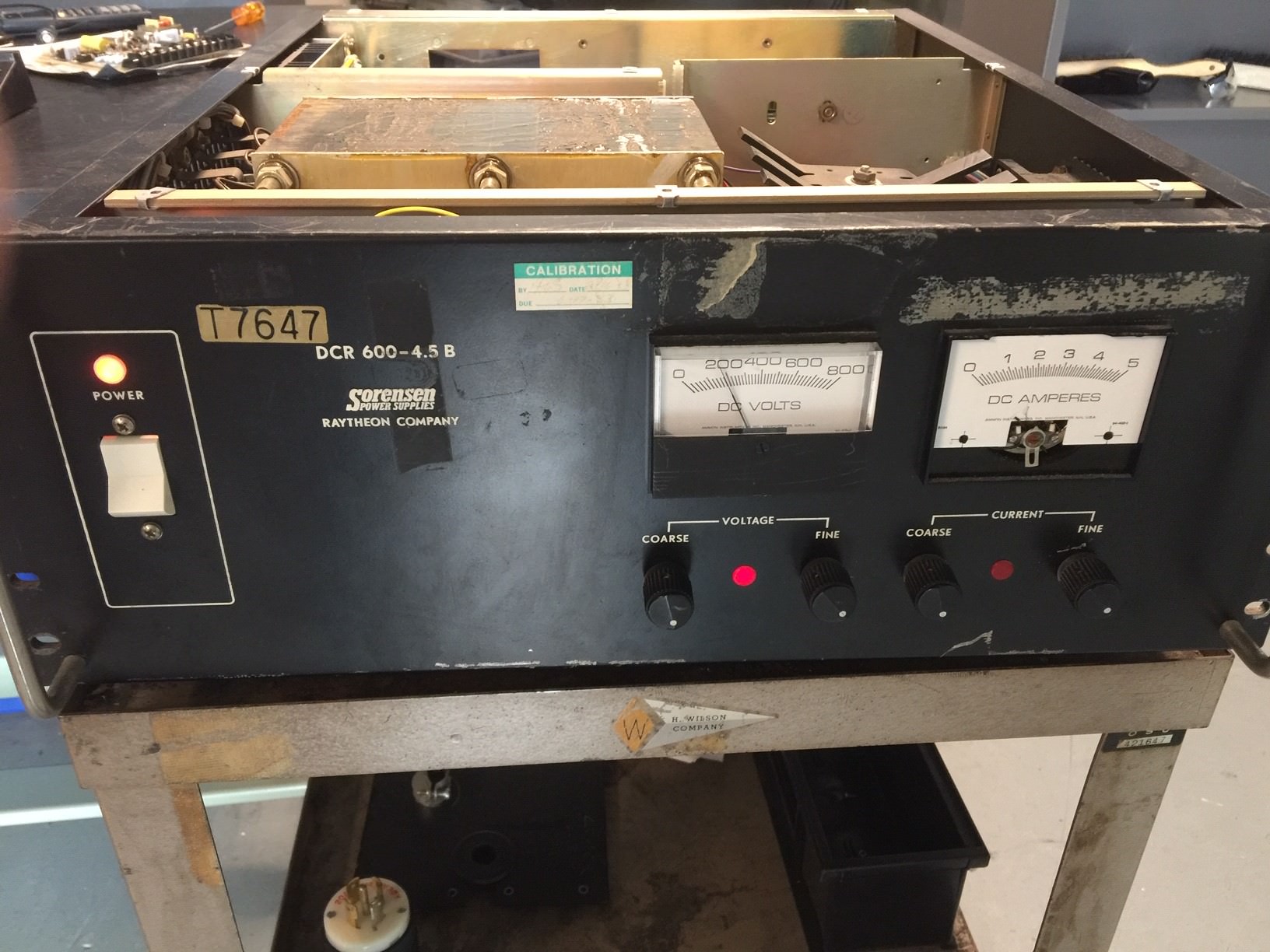

The Sorensen DCR 600-4.5B DC Power Supply, 0-600V, 0-4.5A, 2700W rests on my workbench with the system input voltage supplied from 208V 3-phase 20A because the Sorensen factory default M1 configuration needs 208 VAC for DCR-B series 2700-Watt models. The manual for this vintage Sorensen power supply exists on the internet (Document No. 165042 Rev F), however I am not sure if we can post external links here. Additionally, I have concurrently formed similar threads across a plurality of electronics forums, so know that there exists cross-posting.

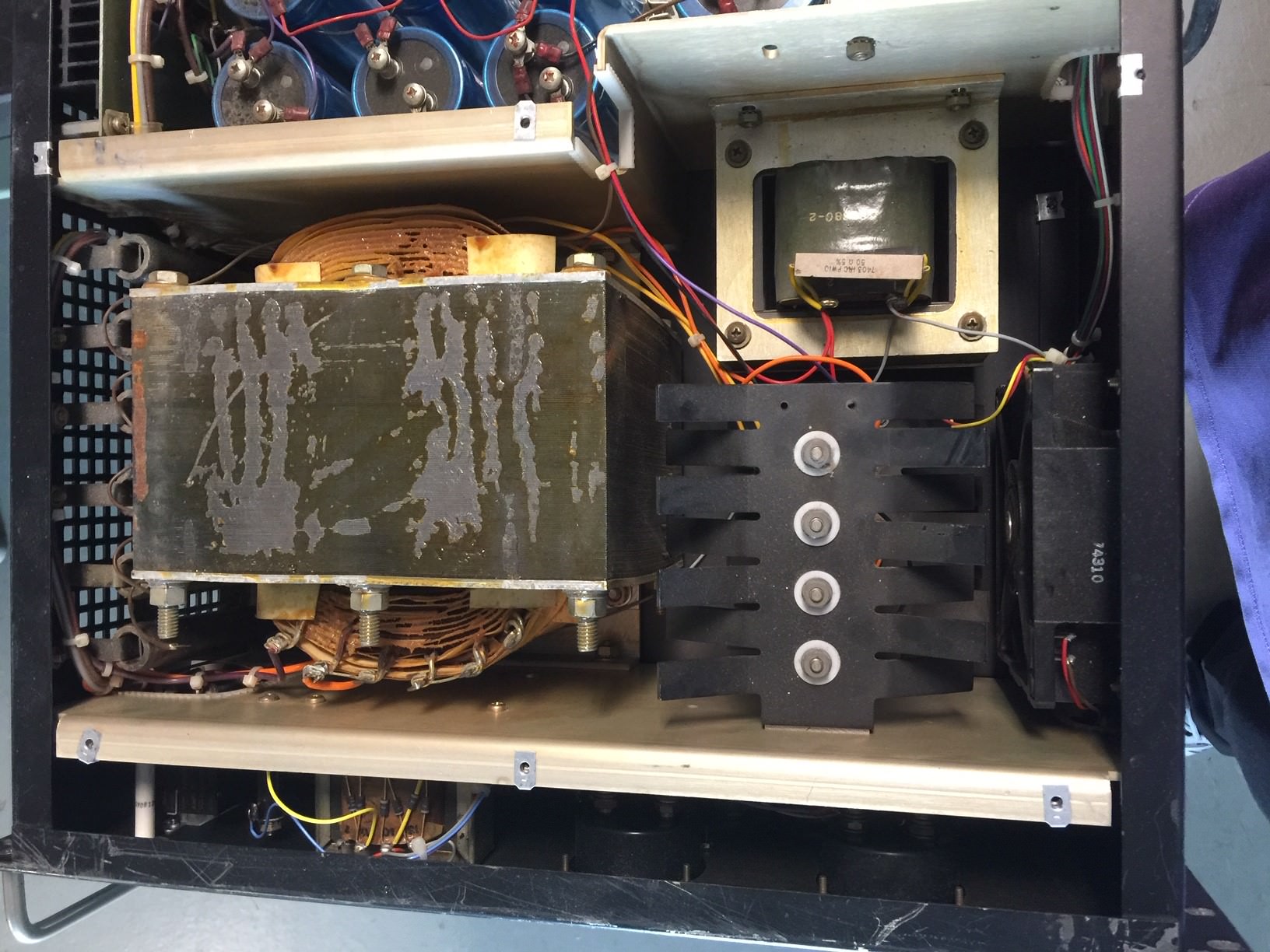

When initially getting the device, the system's chassis fan activated with a flip of the main breaker, however little else occurred in the 7" high chassis. Troubleshooting at the component-level initialized by tracing the supply line voltages. The schematic reflects line voltage to a large transformer, so I verified voltage at those nodes. However, at this point I seek advice and directions. The service manual states, “DCR-B series supplies are phase controlled type with SCR's (Silicon Controlled Rectifiers) or Triacs at the input to the transformer, followed by a passive LC filter … Low dissipation transistors and diodes are located on a single printed circuit board while high dissipation devices are heat sinked to aluminum brackets and heatsinks.”

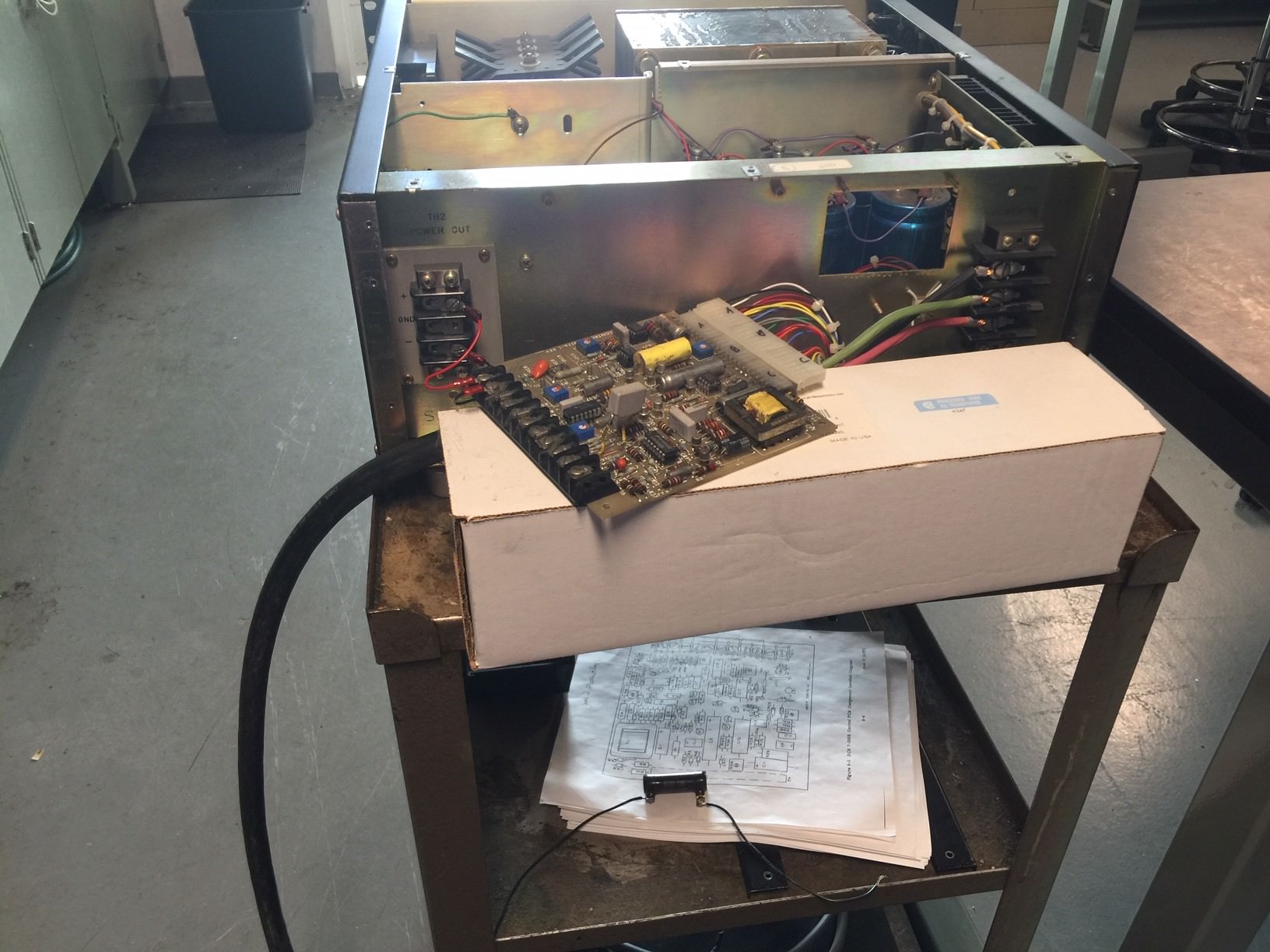

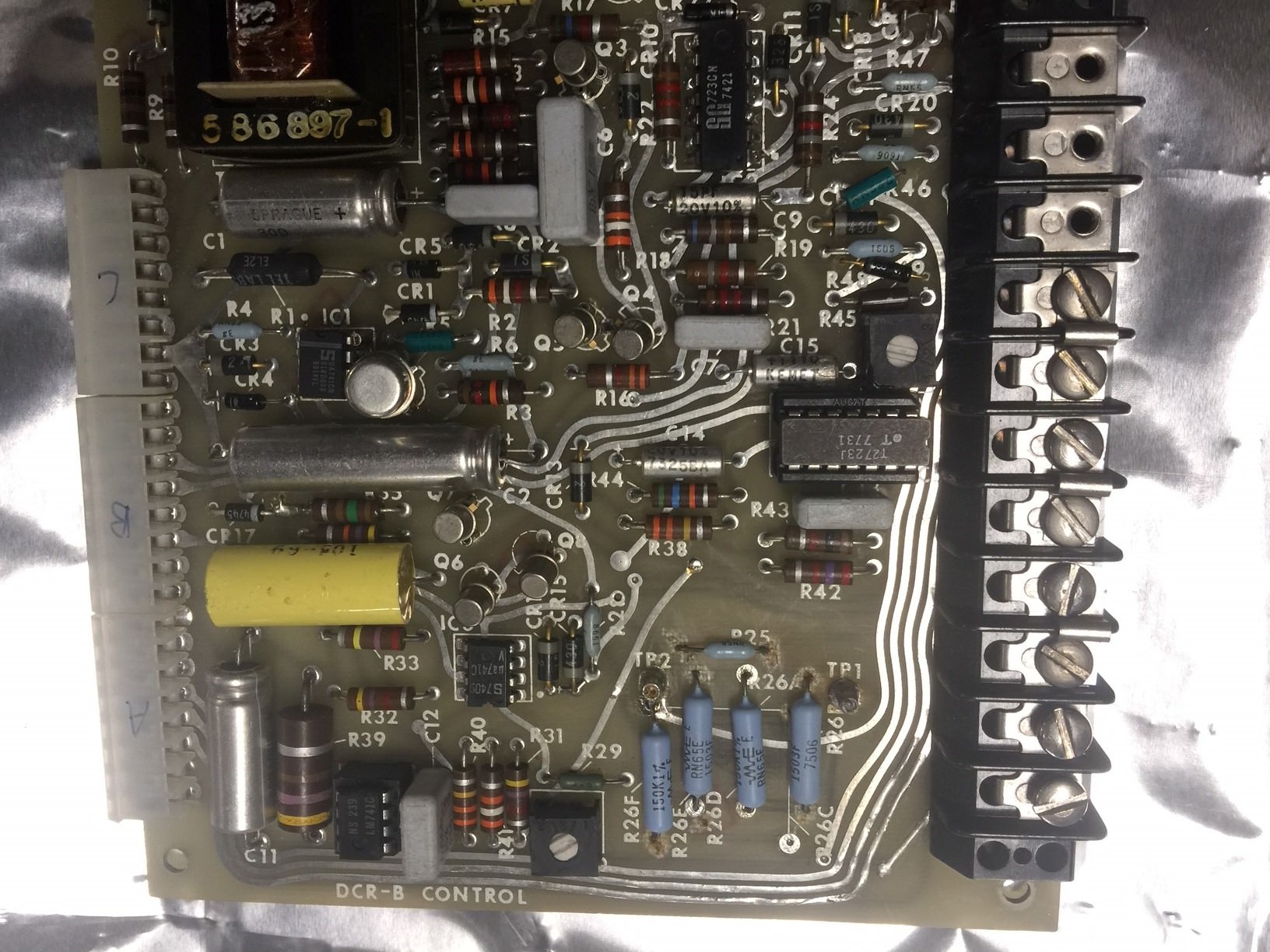

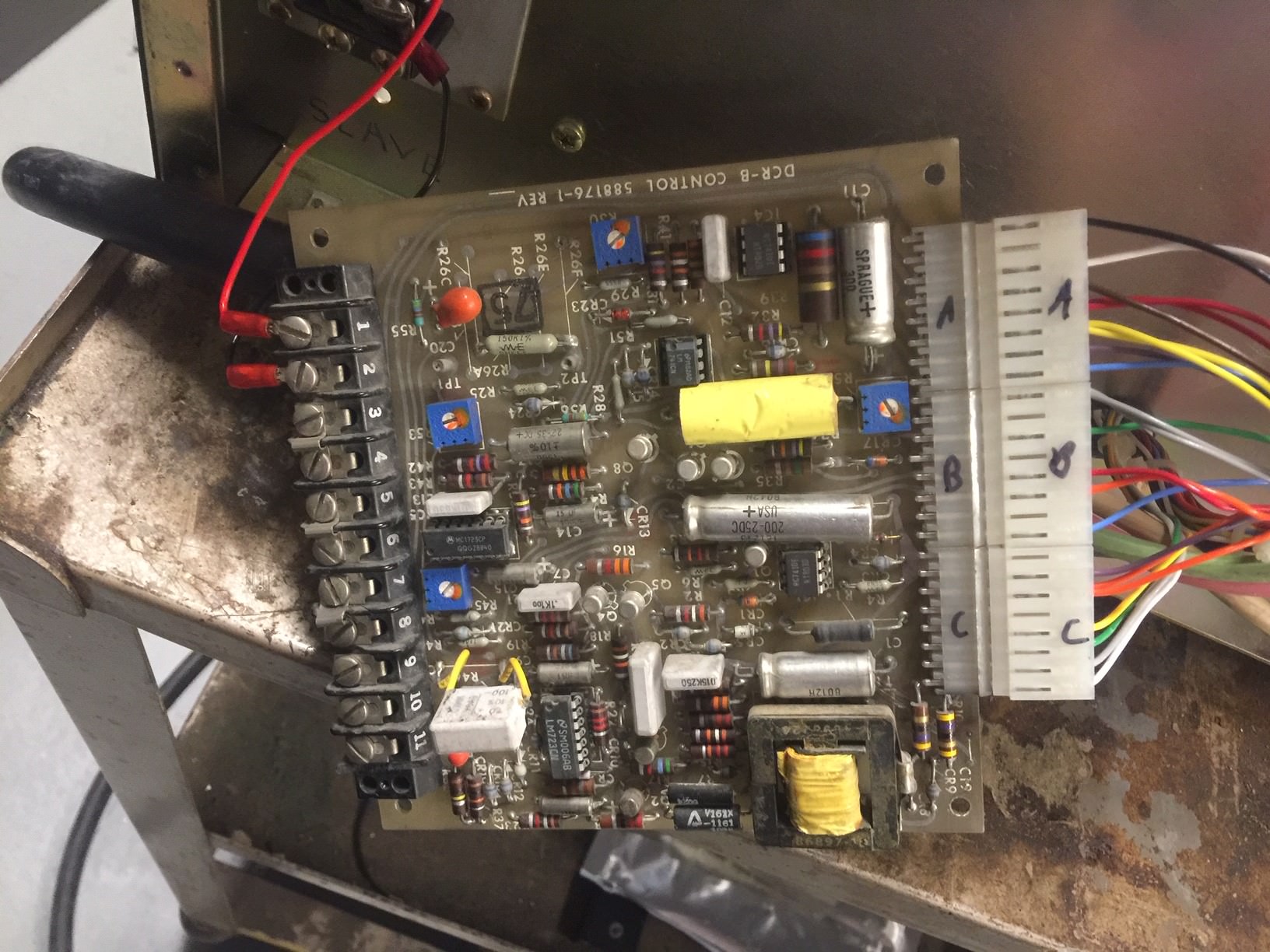

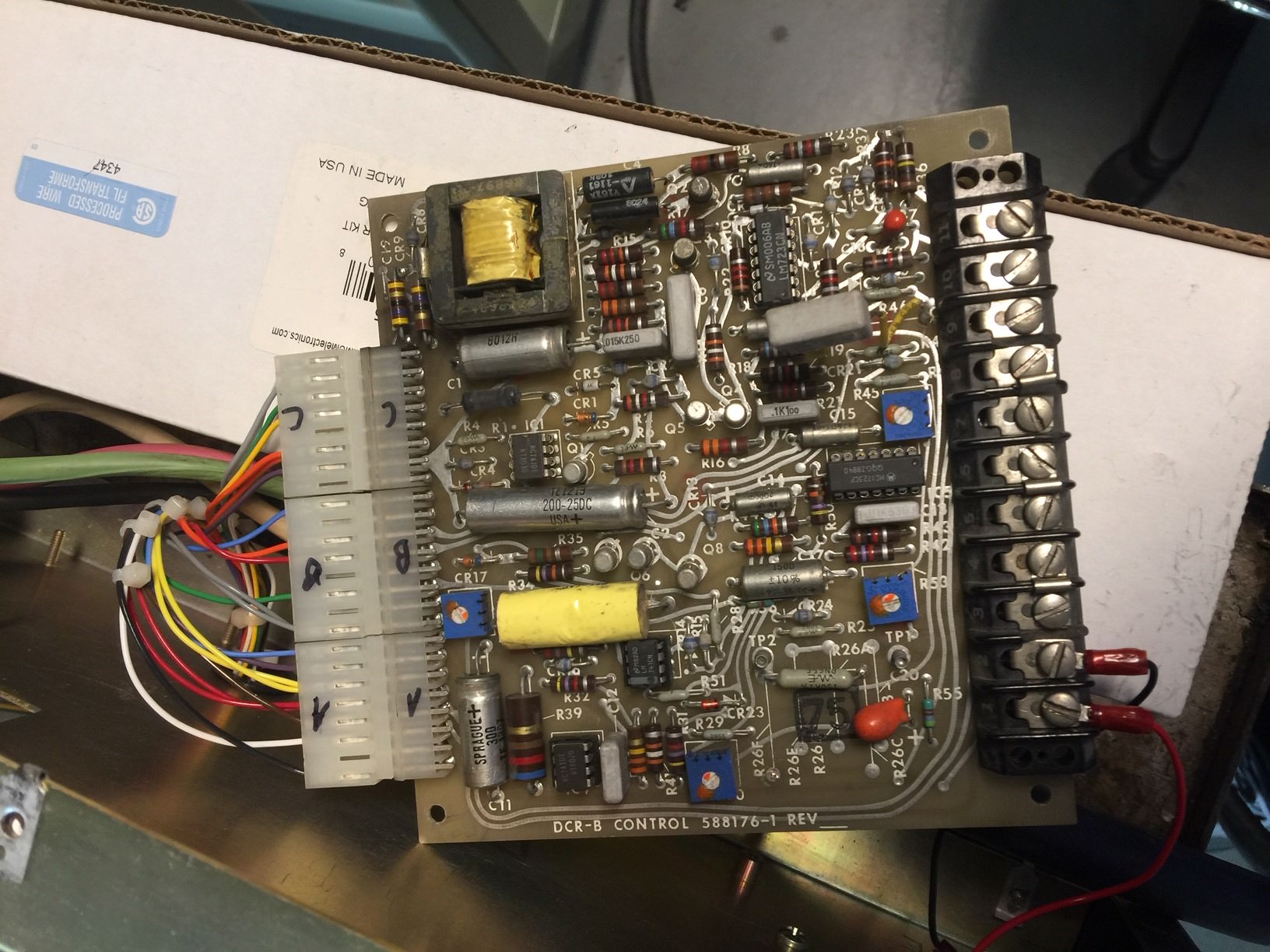

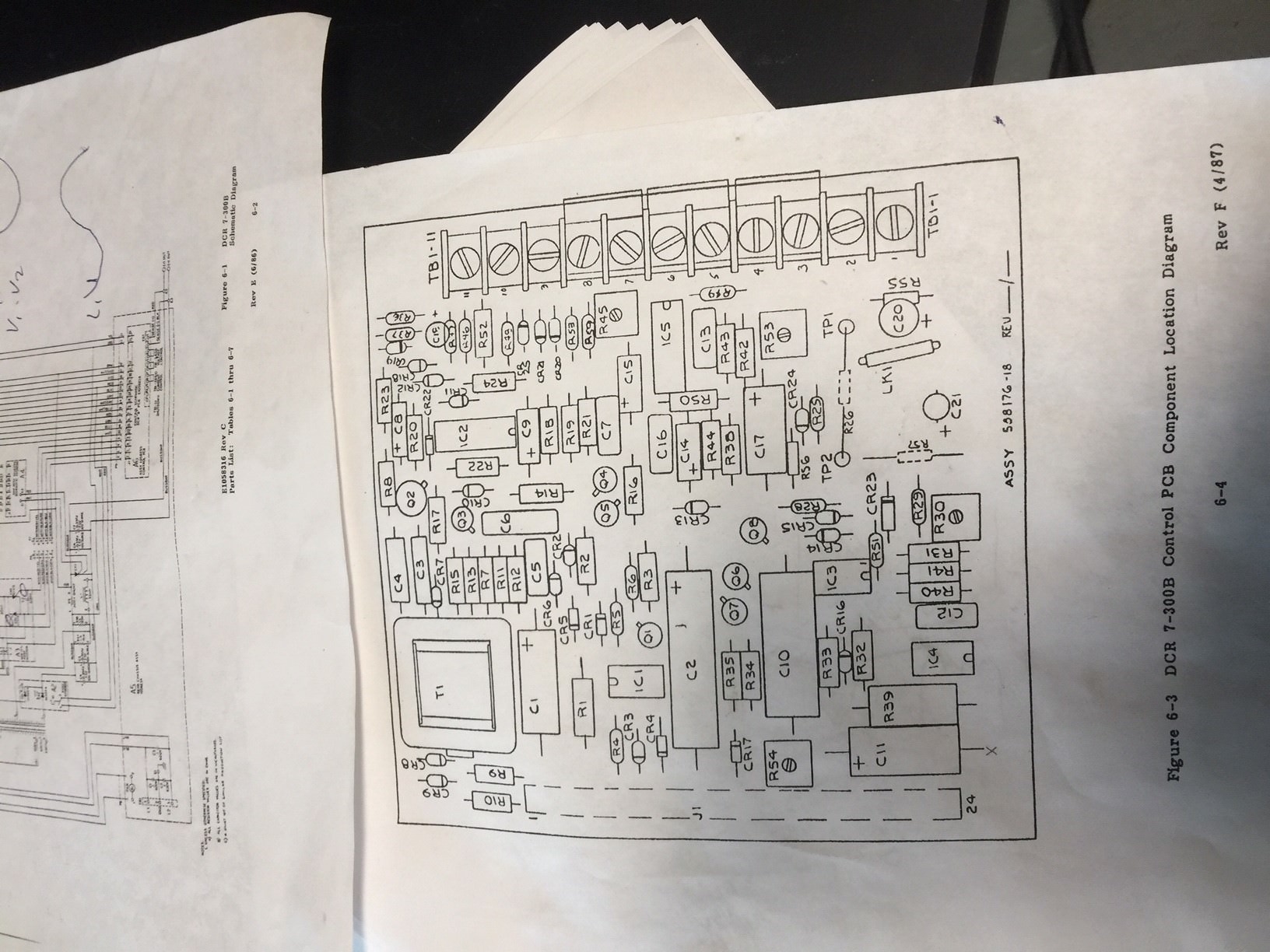

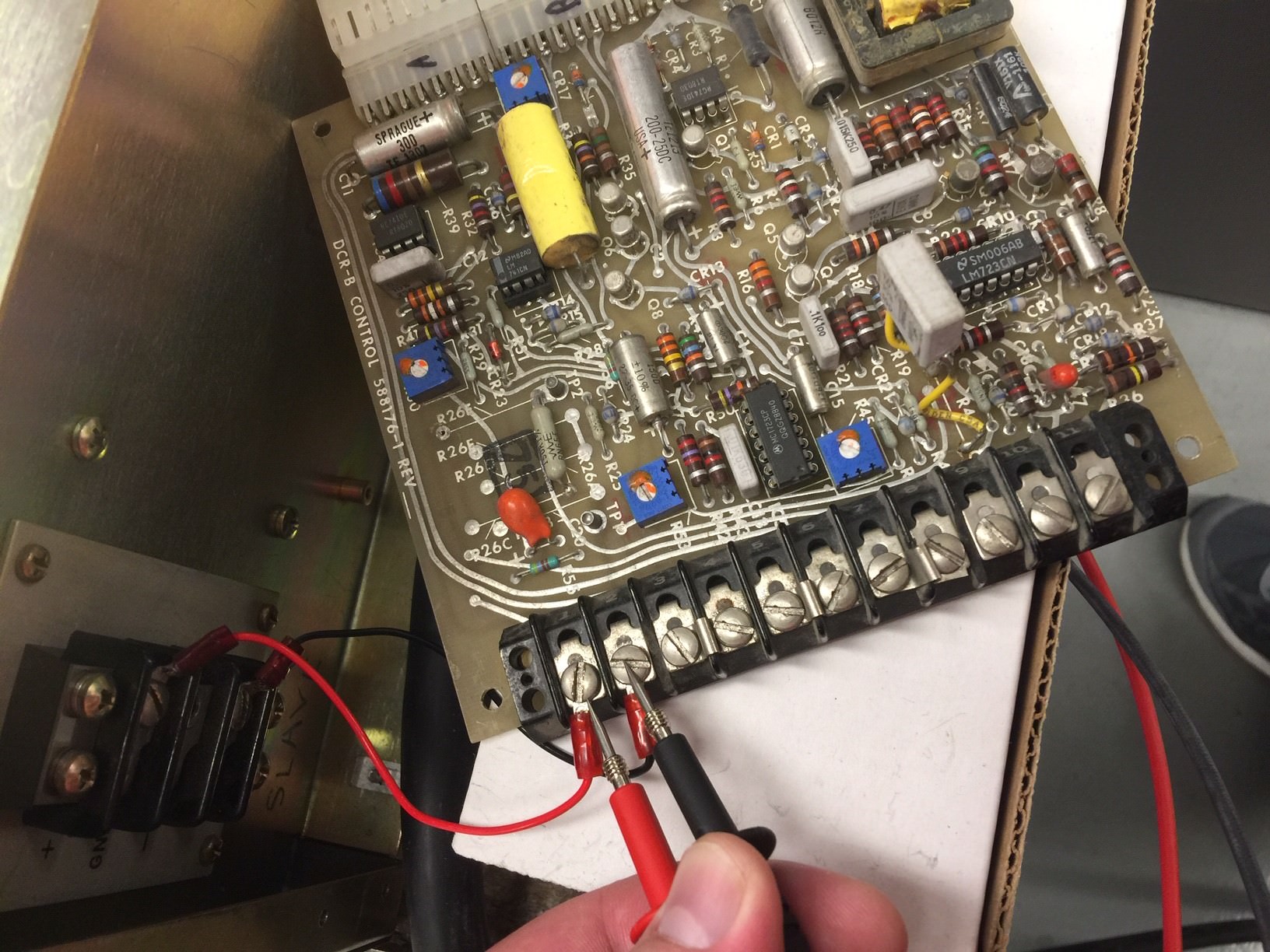

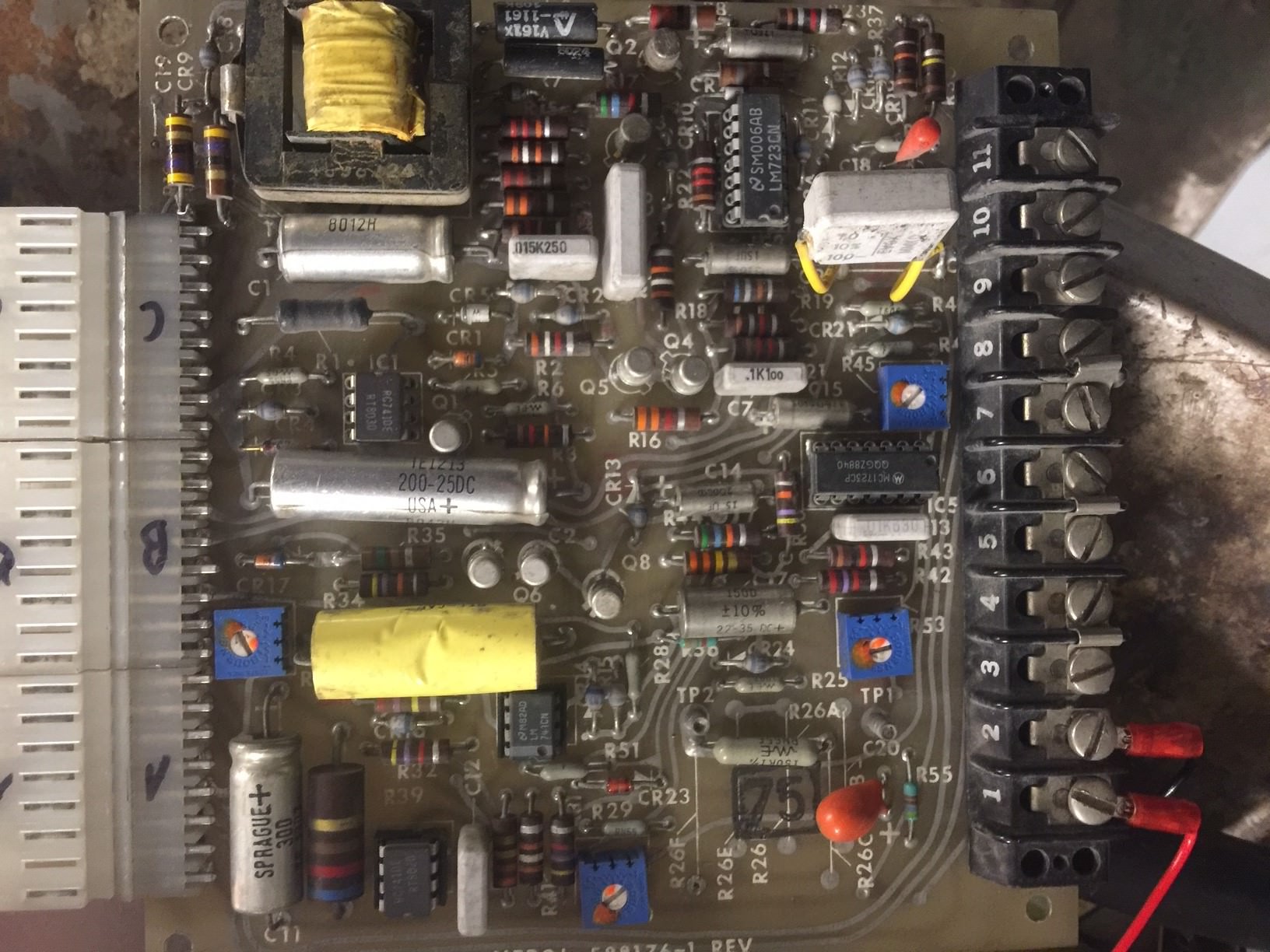

Replacement of the single printed circuit board (DCR control board P/N 586955-1) returned some progress. Now, the system generates variable voltage output when the main breaker activates, however I cannot reach the required 600V specified by the manual. What are your thoughts and advice?
Sincerely,
Mancoast
