Make your own non-inverting Schmitt Trigger

[Adventure_Audio]

Hey There,

I am brand new to this forum and already love it. 2 mins ago I googled electronics forum and here I am!

Please excuse my excitement. I have a question regarding schmitt triggers, more specifically the 74HC7014
(http://www.nxp.com/documents/data_sheet/74HC7014.pdf)

The circuit I am replicating only calls for one Schmitt trigger so I do not want to use a whole hex IC. Refer to this thread for the circuit topic (http://www.diystompboxes.com/smfforum/index.php?topic=108591.0)

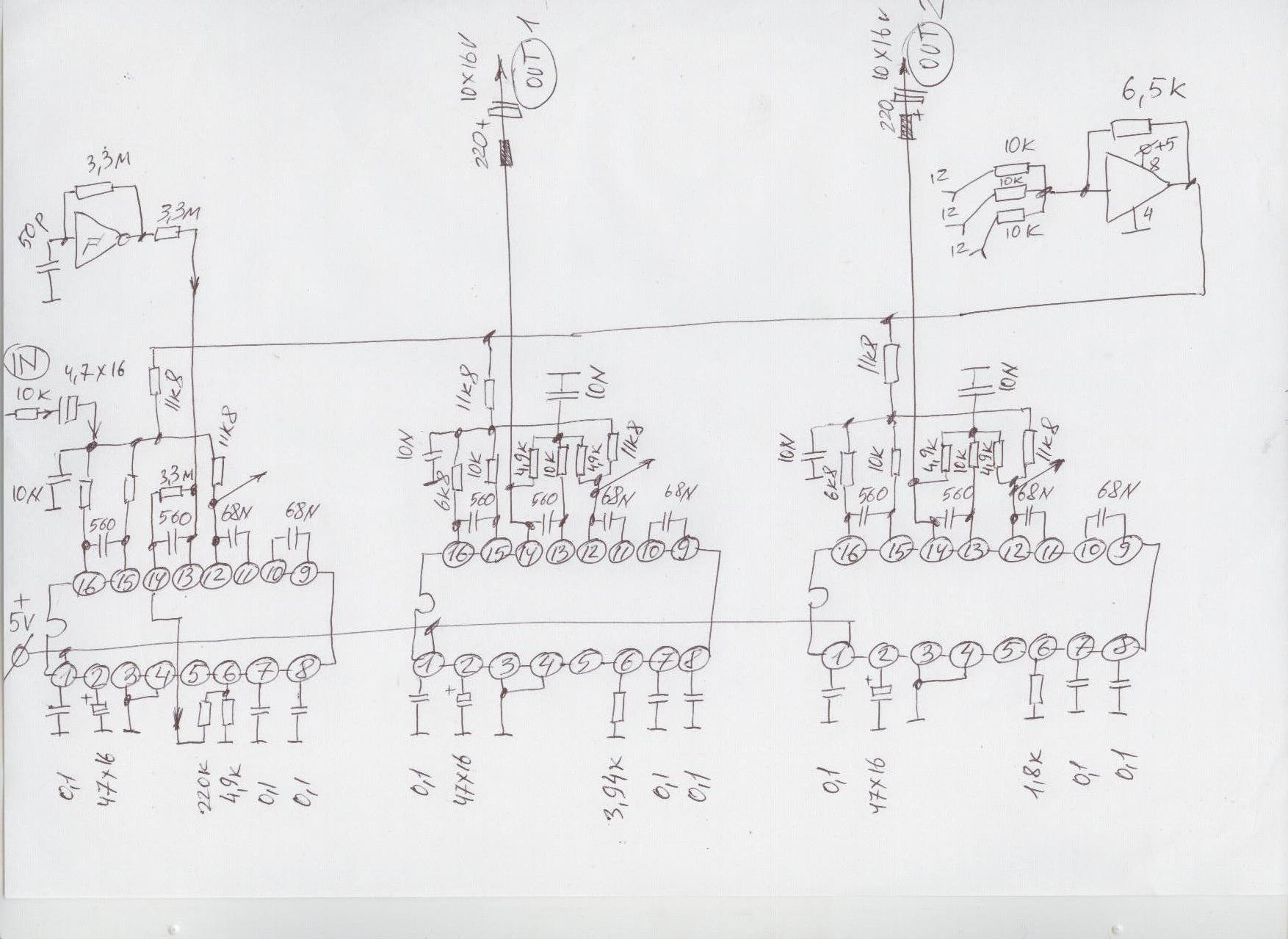

Here is the actual schematic I will be breadboarding. As you can see in the top left corner there is the 74HC7014.

MY QUESTION IS: How can I create a precision schmitt trigger using an op amp?

According to wikipedia (http://en.wikipedia.org/wiki/Schmitt_trigger), I can but am unsure how to go about doing this. Any help is greatly appreciated!

Thanks.



[BobK]

You can make a Schmitt trigger from an op amp or comparator by utilizing positive feedback. Here is an example (scroll down to get to it)

http://www.talkingelectronics.com/projects/OP-AMP/OP-AMP-2.html

Bob



[dablakh0l]

Or, you could use one of these... TC7SET17FTE85LF or TC7SET17FU,LF. Single gate Schmitt triggers.
