Hi all, I hate to be the one to join a forum and start off with a question, however I've been scratching my head for so long my hair is thinning.
I'm currently working on my dissertation for my mechanical engineering degree, electronics is not my strong point, all seems a bit magical to me
Anyway, I'm trying to design a hydraulic system that will operate the inlet and exhaust valves within an engine. Currently at the point of design the hydraulic cylinders however I want to incorporate a means of measuring the displacement of the hydraulic piston, which is directly attached to the valve. Will be a single acting cylinder as keeping the coil spring to close the valve. I've searched the internet looking for a sensor type that could be build into the hydraulic cylinder as don't have much space for a side mounted option. Ideally want to keep the unit as compact as possible, the maximum valve lift will be 7.5mm. Will be run as a bench prototype so temperature isnt a huge concern, however the speed will be as hope to be able to operate as if the engine was running at up to 6000rpm. Also I'd like to be able to capture a number of readings throughout the valve lift so that I can map a lift profile to enable velocities and such to be calculated.
As far as I can see there are a few options that I have, mount something onto the piston that acts as a pickup for an LVDT sensor, this makes the total height quite large. Secondly some sort of capacitive or inductor sensor that would pick up the piston, although it seems quite a large range for these types of sensors. Thirdly would be a flow meter on the inlet of the hydraulic measuring the supply which could be translated to a lift valve.

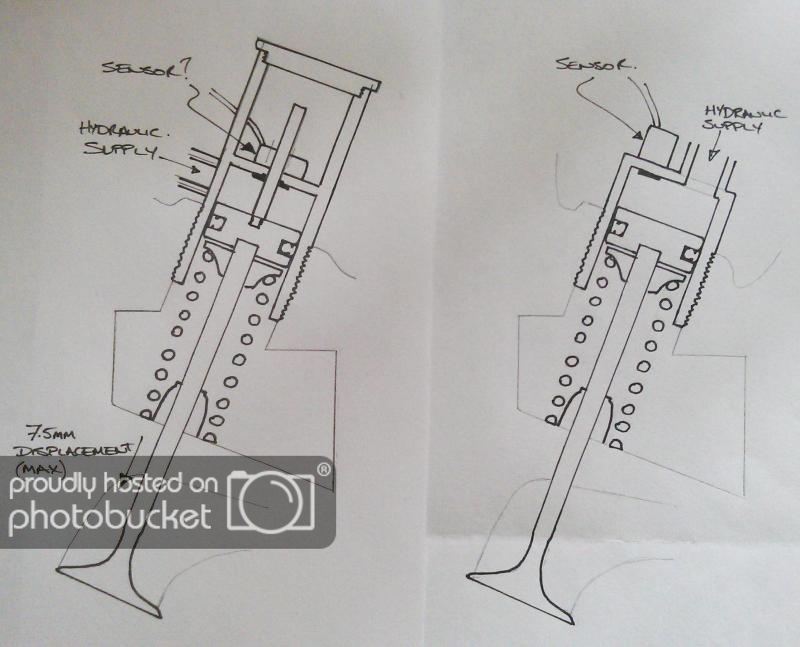

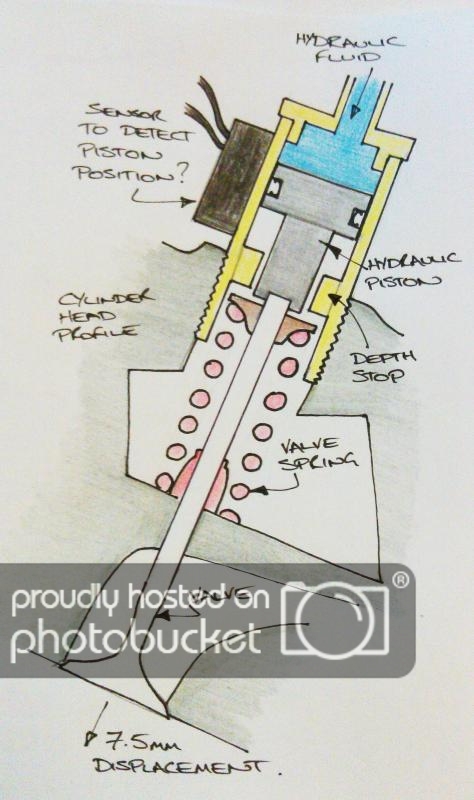

Have included a few sketches to try and help explain what I've been babbling on about.
Realise thats alot of info for people to read on a bank holiday so very much appreciate any pointers.
