Hi all
I am struggling to understand the implementation side of circuit dividers.
I am running an mpguino on my motorbike. Its an arduino based MPG calculation device, It uses 2 inputs, Injector feed and VSS pulses.
My motorbike makes 120000 pulses per mile, which is very high compared to other vehicles. As a result, it cannot keep up at speeds past 70ish mph, and losses information.
The VSS input into the mpguino is 0-5v WRTG.
My aim is to divide the pulses by 24 to give a more reasonable 5000 pulses per mile, but I do not know how go to about it using a circuit.

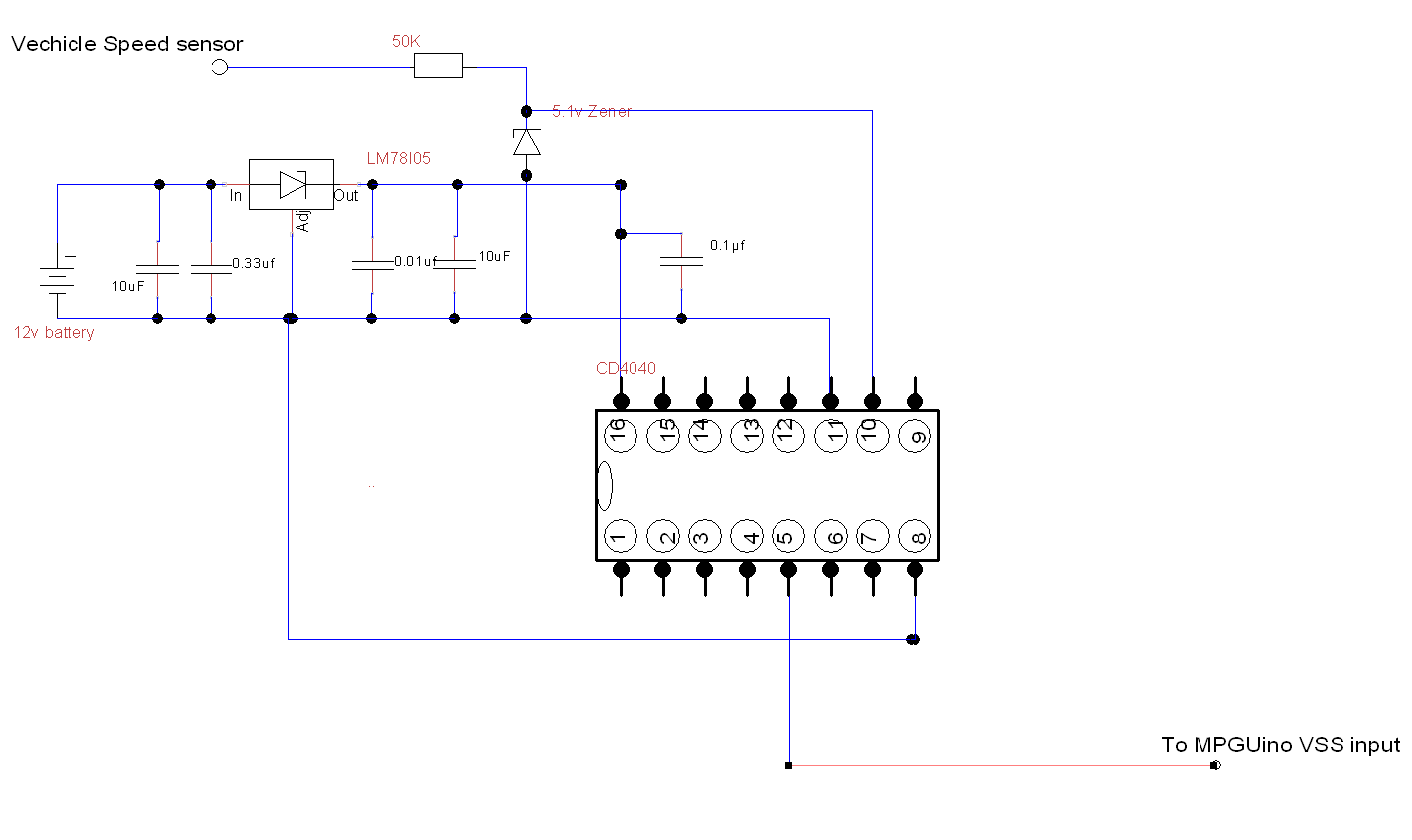

I have read about using a CD4027 or a flip-flop device but I dont know where to start (despite reading page upon page of information!). If somebody could give me a hand designing a simple circuit to go inbetween my VSS signal and the mpguino I would be very greatful!
