Help a blind man in electricity

Status
Not open for further replies.

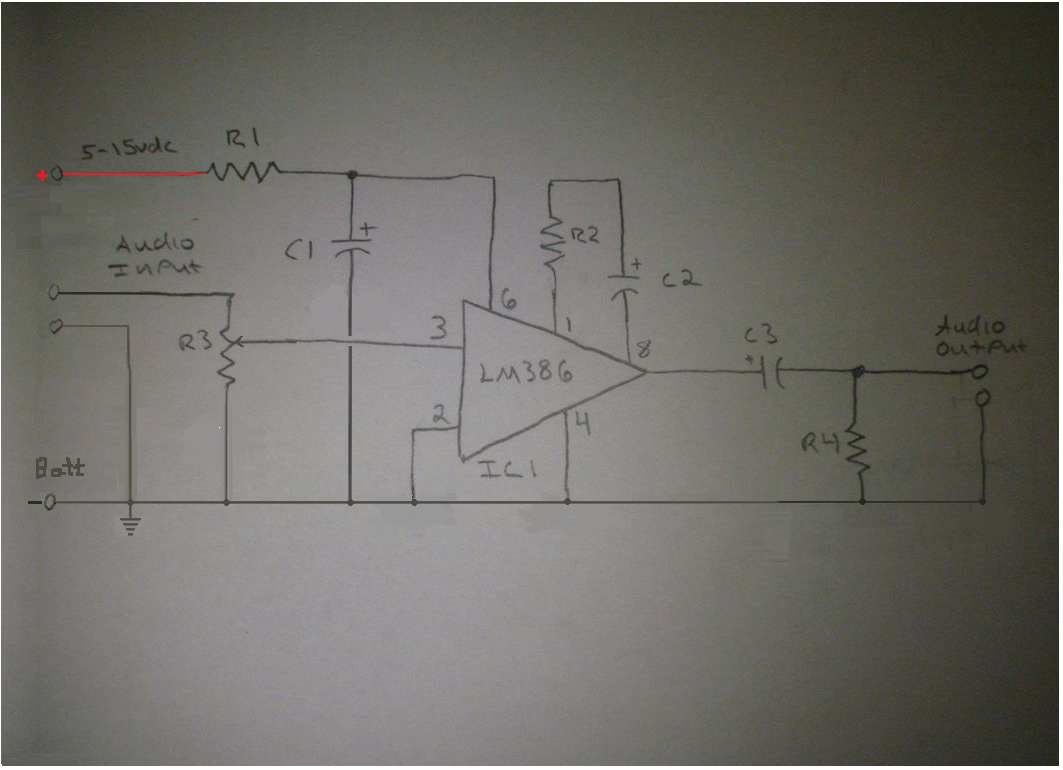

Sorry if this question offends some of you guys, but what to do with the grounding? And audio input and where is the +/- from the 5v source thank youFDWYM1VGD2JJSYJ.LARGE.jpg

I used to be a blind man. But about 20 years ago I stopped selling blinds.

5v is on the diagram. This is the red lead in the diagram. This is called the positive lead. The black lead from the 5v goes to the earth symbols. This is the negative lead.

In other words, all the ground symbols tie together and to the negative (black) supply wire. The audio input wires connect to the top of R3 and to ground (same negative wire)

Hope my answer doesn't offend anyone.

Ps; Should R3 be a variable resistor?

.



ME TOO ! ! ! . . . . . . I once was technically blind also . . . . . . . . and I'm still deaf and dumb . . . . .




73's de Edd

In other words, all the ground symbols tie together and to the negative (black) supply wire. The audio input wires connect to the top of R3 and to ground (same negative wire)

Hope my answer doesn't offend anyone.

Ps; Should R3 be a variable resistor?
Oh one more thing how do i know wich one is the 123 or 4 from the triangle ic in the drawing?
.

Last edited by a moderator:

(*steve*)

¡sǝpodᴉʇuɐ ǝɥʇ ɹɐǝɥd
Moderator
If you place the chip so the semicircular indent is at the top and/or the circular mark is at the top left corner (your chip has both , some have only one), then the pins will be on the left and right sides.

pin 1 is on the top left corner, pin 2 below it, then pin 3, with pin 4 on the bottom left corner.

Pin 5 is on the bottom right, with pin 6 above it, then pin 7, and finally pin 8 on the top right corner.

Pretty much all pin numbering goes in a circle, clockwise from the index mark.

Google for a datasheet for this component and it will have all these details as well as many more.

If you place the chip so the semicircular indent is at the top and/or the circular mark is at the top left corner (your chip has both , some have only one), then the pins will be on the left and right sides.

pin 1 is on the top left corner, pin 2 below it, then pin 3, with pin 4 on the bottom left corner.

Pin 5 is on the bottom right, with pin 6 above it, then pin 7, and finally pin 8 on the top right corner.

Pretty much all pin numbering goes in a circle, clockwise from the index mark.

Google for a datasheet for this component and it will have all these details as well as many more.
thanks m8

And of course, the symbol used for Common implies it is connected to earth ground.:p
