Can't identify if transistor is PNP or NPN?

I'm kind of a newbie with electronics but I do know how to differentiate the two generally. But in this there aren't any of the common markers. If I had to guess it would be NPN but I can't be certain. If someone more experienced could help me out that would be great.

Also, if there are any guitar pedal guys out there, does the pot control the overall fuzziness of the circuit?

Thank you very much (all help is appreciated)


Attachments

  • basic-fuzz-circuit.jpg
    16.9 KB · Views: 447
What at terrible circuit diagram.o_O
No need to guess,the Emitter-arrows point inwards ==> they are both PNPs.
Here is a site that will clear things for you,
and another one here.

Last edited:

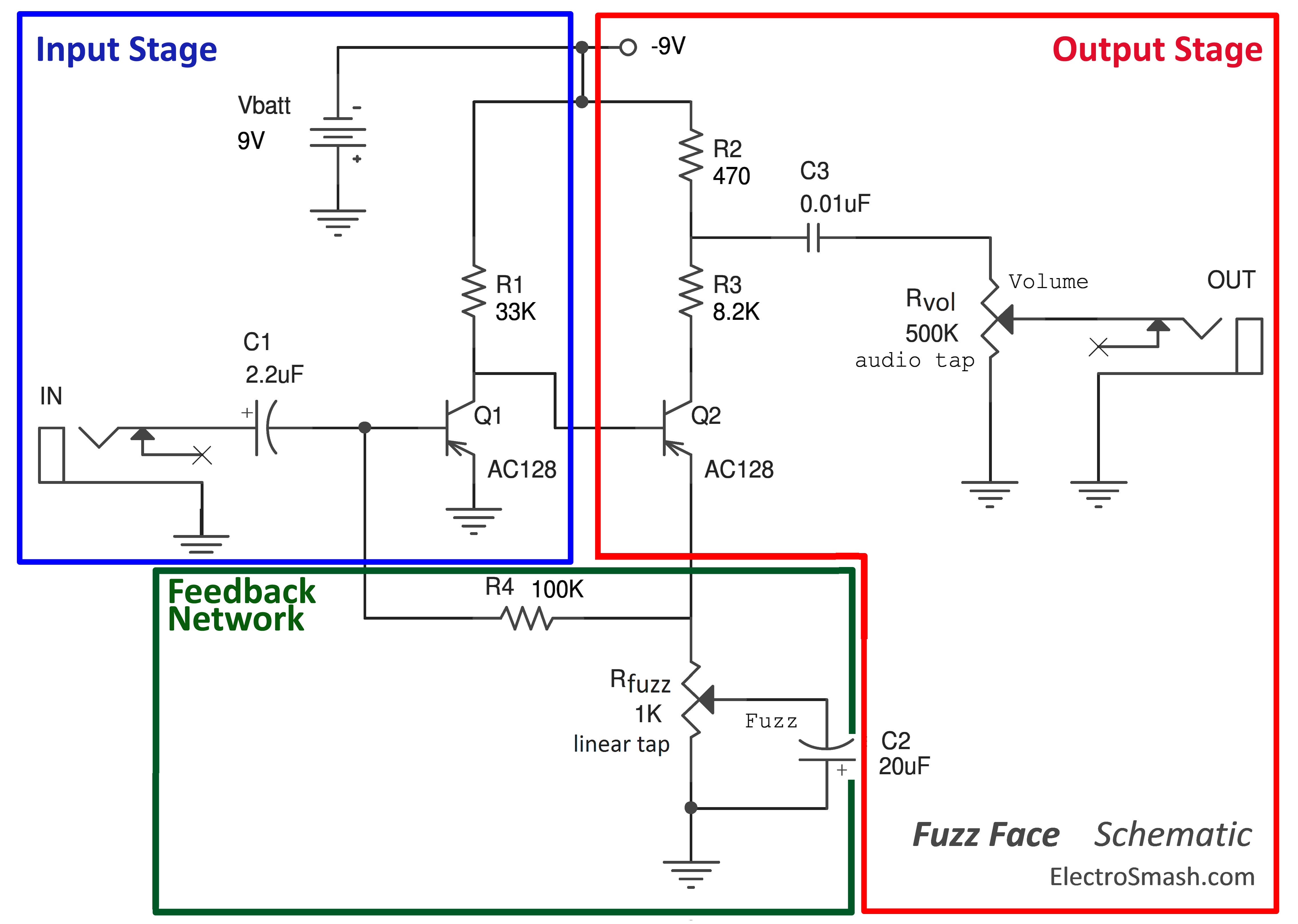

Here's the original 50 year old circuit



(*steve*)

¡sǝpodᴉʇuɐ ǝɥʇ ɹɐǝɥd
Moderator
Just like on a map, the arrow points to N.

on the transistor symbol, if the arrow points out, it's an NPN transistor (because the N's are on the outside). If it points in, out must be PNP.

on a mosfet or jfet the arrow also pointed to N. Pointing inward, it must be an N channel device, so pointing out means P channel.

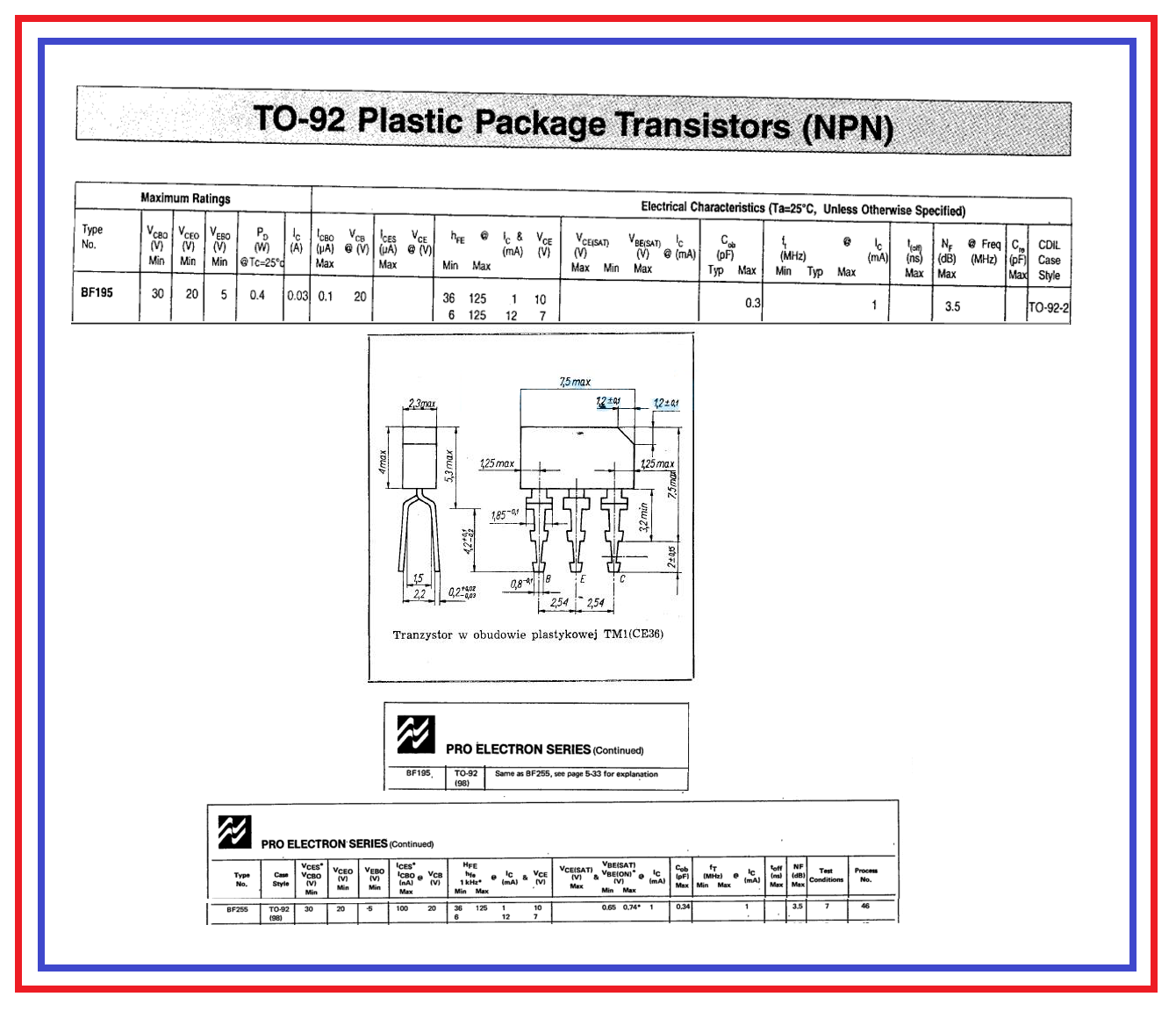

Hi I am very new to electronics, I am using a BF195 transistor, and I am not sure which pins are the base, collector and emitter. I have looked for schematics' online but can't find any. I am pretty sure it is an N-P-N. Please help. Many thanks in advance. Regards Nick

.


Sir Nicholas MacNaughtan . . . . . . .


Had to dig thru ye olde design reference library for that one . . . .




From the words uf der Katzenjammer Kids . . . . . .

Ahhhhhh chesss ve dun just bin gettink in und fresh 'chipment dis mornink . . . . und vud you be wantink vit der left handed or der left handed vershuns?
Und vud you be wantink schmidt der clockwise electron flow fer der norths uf der equator . . . ..or fer der counterclockwise electron flow fer der souths uf der equator ?



73's de Edd



.

The connections of various transistor differ. Sometimes the collector is in the middle, sometimes at the end. You will need to look up the data or measure the transistor for gain.
Note that just to confuse, some transistors of one type have a different connection layout, these may be labelled with an L after the number.

.



Sir Nicholas MacNaughtan . . . . . . .

In this manufacturers cases point of reference, it is being the 45 degree slope, that's notching off of the whole top corner, above the collector side of the transistor.

73's de Edd



.

I'm kind of a newbie with electronics but I do know how to differentiate the two generally. But in this there aren't any of the common markers. If I had to guess it would be NPN but I can't be certain. If someone more experienced could help me out that would be great.

Also, if there are any guitar pedal guys out there, does the pot control the overall fuzziness of the circuit?

Thank you very much (all help is appreciated)


hi, get one of these, this will i.d the connections.:

http://www.ebay.com.au/itm/All-in-1...691216?hash=item51d8fb2f10:g:HV0AAOSwWnFWCm30

I'm kind of a newbie with electronics but I do know how to differentiate the two generally. But in this there aren't any of the common markers. If I had to guess it would be NPN but I can't be certain. If someone more experienced could help me out that would be great.

Also, if there are any guitar pedal guys out there, does the pot control the overall fuzziness of the circuit?

Thank you very much (all help is appreciated)
Purchase a "PEAK" atlas DCA55 semiconductor tester from MCM Electronics. Inexpensive and will tell you everything you will need to know about transistors including lead ID and specs and whether the transistor is bad or not.

Purchase a "PEAK" atlas DCA55 semiconductor tester from MCM Electronics. Inexpensive and will tell you everything you will need to know about transistors including lead ID and specs and whether the transistor is bad or not.


A transistor has 3 leads and is basically two diodes back to back with the outer leads going to the EMITTER and the COLLECTOR and the middle lead going to where the junction is. which is the BASE. Not all transistors have the same lead configuration, although most times the BASE is the middle leg and the COLLECTOR is tied to the case. A simple multimeter switched to OHMS can tell you the polarity and lead configuration. Select 2 leads and put the multimeter across them, if you have selected a BASE/EMITTER diode, the multimeter will read low resistance one way, then reverse the leads and it will read high resistance. Repeat to find the BASE/COLLECTOR diode. If you have selected the EMITTER/COLLECTOR 2 outer legs the multimeter will read high resistance both ways. Check with a diode to check the polarity of your multimeter output. +ve on the ANODE will give a low resistance reading.

The verse Pointing In (PNP) and Not Pointing In (NPN) is true.

Also, the EMITTER is always connected to its polarity ie. PNP is always +ve. NPN is always -ve
The COLLECTOR is always connected to its opposite polarity ie. PNP is always -ve and NPN is always +ve.

Forgot to mention -
The 2 diodes in a NPN transistor are pointing towards each other and in a PNP transistor the 2 diodes are pointing away from each other

On the resistance range, an analog meter usually puts a positive voltage on the black lead and negative on the red lead, this can confuse things.
Do not use the lowest resistance range, this can blow delicate transistors.
Just keep a known transistor to compare.

If the transistors are being used in a circuit, then there will be about 0.2V for germanium and 0.6V for silicon between emitter and base.
Some early transistor circuits used a positive 'earth' and all later ones use a negative 'earth'.

I went to Buxton on the Transpeak bus to buy a Peak meter. Lovely ride.

A transistor has 3 leads and is basically two diodes back to back with the outer leads going to the EMITTER and the COLLECTOR and the middle lead going to where the junction is. which is the BASE. Not all transistors have the same lead configuration, although most times the BASE is the middle leg and the COLLECTOR is tied to the case. A simple multimeter switched to OHMS can tell you the polarity and lead configuration. Select 2 leads and put the multimeter across them, if you have selected a BASE/EMITTER diode, the multimeter will read low resistance one way, then reverse the leads and it will read high resistance. Repeat to find the BASE/COLLECTOR diode. If you have selected the EMITTER/COLLECTOR 2 outer legs the multimeter will read high resistance both ways. Check with a diode to check the polarity of your multimeter output. +ve on the ANODE will give a low resistance reading.

The verse Pointing In (PNP) and Not Pointing In (NPN) is true.

Also, the EMITTER is always connected to its polarity ie. PNP is always +ve. NPN is always -ve
The COLLECTOR is always connected to its opposite polarity ie. PNP is always -ve and NPN is always +ve.

Very true but my method is much simpler, inexpensive and better for a novice. I have one and love it. I use it instead of my curve tracer unless I want to match one device to another.

On the resistance range, an analog meter usually puts a positive voltage on the black lead and negative on the red lead, this can confuse things.
Do not use the lowest resistance range, this can blow delicate transistors.
Just keep a known transistor to compare.

If the transistors are being used in a circuit, then there will be about 0.2V for germanium and 0.6V for silicon between emitter and base.
Some early transistor circuits used a positive 'earth' and all later ones use a negative 'earth'.

I went to Buxton on the Transpeak bus to buy a Peak meter. Lovely ride.

I can recall hiking thru' Dovedale in my youth.Thanks for stirring great memories.

Many cheap basic multimeters have a transistor test function.
Select the transistor test range, and try the device in the test socket various ways round.
When the display shows the greatest amplification, that is the correct pinout.

There a also many "Component Analysers" available which will give even more information on the component. (Very cheap from the Far East on places like Ebay,)

Datasheets for transistors which give you all specifications.are free on the internet.
Ideally get them from the manufacturer's website, or just search for "Datasheet [device code]", e.g. "Datasheet BF195"

Most transistors and components are made by many different manufacturers.
(Look up "second sourcing" on Wikipedia.) So even a datasheet from the wrong manufacturer will give the approximately correct information.

Many electronics hobby sites have beginner's courses on electronics.
