Hey friends welcome back today in this Instructable i will show you how to Make Tripwire security Alarm using Arduino.
A tripwire is one of the most basic ways to set up a very simple security system. You cross a line across a pathway. Whenever someone walks through the beam, the buzzer alarm activate. This project is very simple to build since we won't have to modify any parts.
You can watch the tutorial and finished product right here - Make-arduino-laser
You can find all of my projects on https://www.diyprojectslab.com/
Thank You NextPCB
This project is successfully completed because of the help and support from NextPCB.
Guys if you have a PCB project, please visit their website and get exciting discounts and coupons.
Only 0$ for 10pcs 1-4 layer PCBs：https://www.nextpcb.com/pcb-quote
Let's get started!
wire (Amazon.com)
Arduino Nano (Amazon.com)
Buzzer (Amazon.com)
Battery Holder (Amazon.com)
Battery (Amazon.com)
Laser (Amazon.com)
LDR Sensor (Amazon.com)
wire (Amazon.com)
Here is the Schematics Diagram for this project. as you can see the circuit diagram is very easy and simple. follow circuit diagram and connect the all components.
Here is the Schematics Diagram for this project. as you can see the circuit diagram is very easy and simple. follow circuit diagram and connect the all components.
I provided a image with all pins tagged to make things easier for you.
Plug our Buzzer into GND and Pin D8 of the Arduino.
The LDR will go into GND and Pin D2 of the Arduino.
I provided a image with all pins tagged to make things easier for you.
First, download the Arduino sketch from here
Connect the Arduino with your laptop or PC using usb cable and program your Arduino using the code provided in below.
First, download the Arduino sketch from here
Website

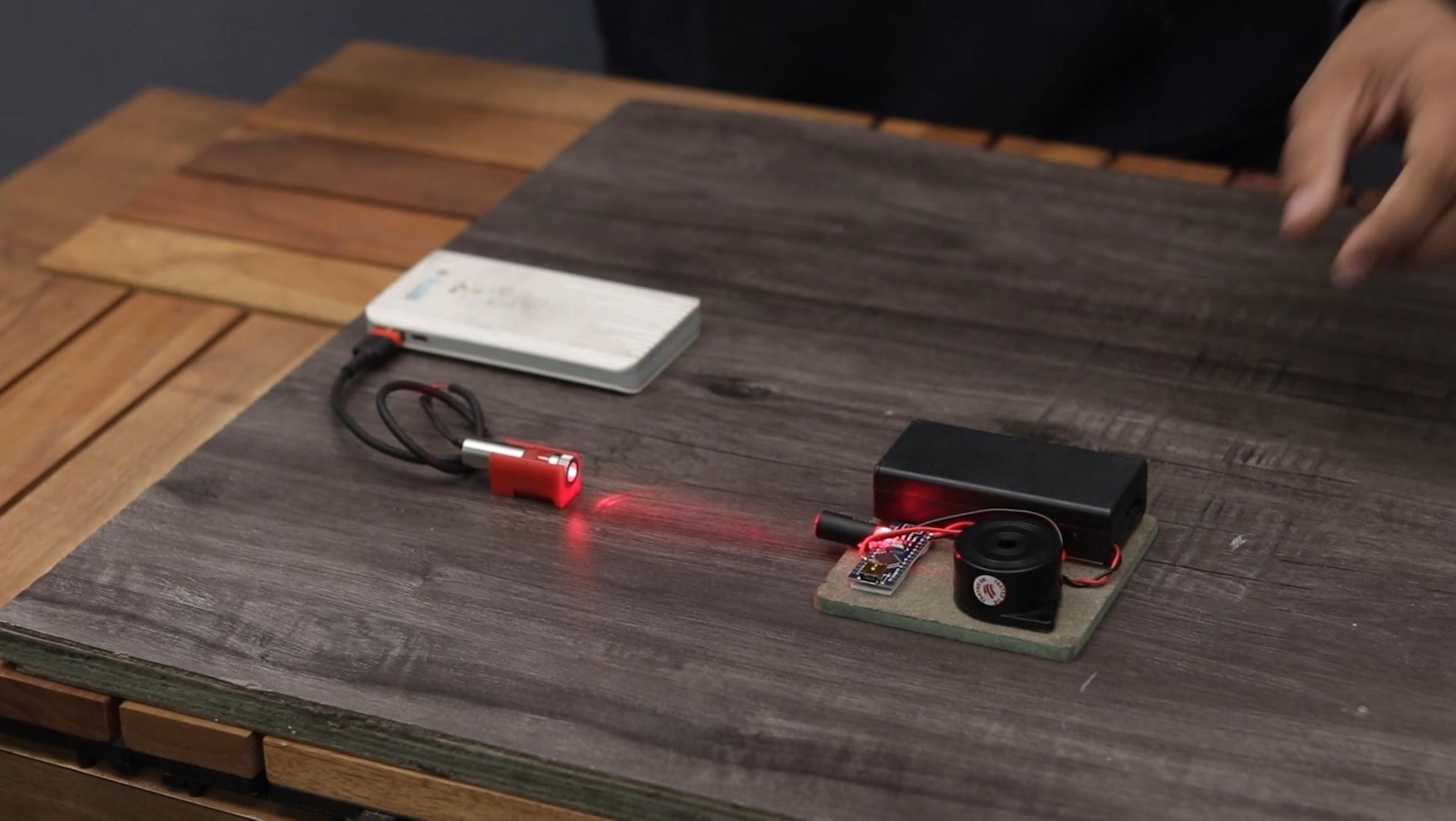

Mount the Laser Pointer and the Alarm Circuit to Form a Single Beam Tripwire
The simplest way to set up your alarm is as a single beam tripwire. In this configuration the laser pointer is mounted to one side of the walk way and the alarm circuit is mounted to the other. For the tripwire to work, the laser pointer needs to be constantly on. The easiest way to accomplish this is by tightly wrapping a piece of tape around the button.
